产品详细内容
产品型号: 65-3745-87
产品品牌: BEL-ART
功能
- Observe the flow of liquid or gas and set the flow in the direction of the specified arrow.
- For flexible tubes, the body is made of polystyrene (PS).
- Used at room temperature (standard +20°C), withstand voltage 6 kPa.
- The flow rate is determined by the position and rotational speed of the internal nylon ball.
- For water, the sphere rotates at a minimum of 50 mL/min in the horizontal position and at a minimum of 140 mL/min or more in the vertical position.
- For air, the sphere rotates at a minimum of 3 L/min in the horizontal position and 8 L/min or more in the vertical position.
规格
- Applicable Tube Inner Diameter: 6.5mm: 1/4"~10mm: 3/8"
- Connection Port Outer Diameter x Inner Diameter (mm): 5~12 x 2
- Size (mm): 77 x 14 x 56 H
相关产品推荐
您可能还对以下产品感兴趣
连接器/管件/泵阀
连接器/管件/泵阀
61-7634-52 ［已停用］不锈钢 (SUS316) 安装不同直径的接头直φ6-φ4清洁封装 SSG6-4-C
型号: 61-7634-52
品牌: NIHON PISCO CO., LTD.
连接器/管件/泵阀

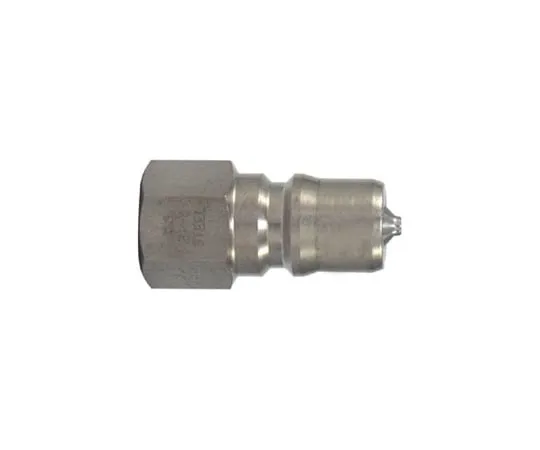

65-9006-06 ［Discontinued］SP-A Coupler R1/4 Steel 32 g 2P-ASTEELFKM
