产品详细内容
产品型号: 65-9006-06
产品品牌: NITTO KOHKI CO., LTD.
功能
- For medium pressure.
- Both the socket and plug are equipped with automatic opening and closing valves to prevent fluid outflow during separation.
- Various body materials, sizes and mounting shapes have been standardized to meet a wide range of applications and conditions.
- Nickel plating is used for the surface treatment of the steel body. Efforts are being made to reduce environmental impact.
- Compatibility: Cannot connect if the size is different. Can be connected to traditional SP Couplers (same size).
规格
- Counterpart Mounting Screw Size: R1/4
- Body Material: Steel
- Mass (g): 32
- L(mm):36
- C(mm):22
- H (mm): Hex 17
- T:Rc1/4
- Valve Structure: Double Road Opening/Closing Type
- Maximum Working Pressure (MPa{kgf/cm2}): 7.5{76}
- Pressure Capacity (MPa{kgf/cm2}): 10.0{102}
- Seal Material: Fluororubber
- display symbols: FKM
- Operating Temperature Range (°C): -20 to +180
- Remarks: Standard Material
- Recommended maximum tightening torque (N · m{kgf · cm}): 14{143}
- Type: Plug
相关产品推荐
您可能还对以下产品感兴趣
连接器/管件/泵阀
64-3811-14 提升高度安全阀密封型，螺纹50 A 2 B 0.1 MPa SET AL-150-50AX0.1MPA
型号: 64-3811-14
品牌: Yoshitake Inc.
连接器/管件/泵阀

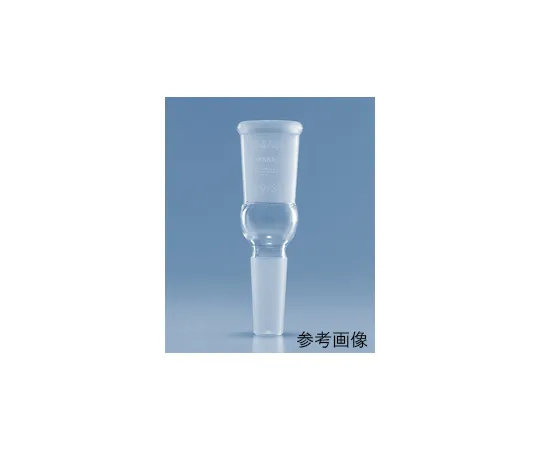

61-9729-84 通用滑动连接管(对于不同直径管，扩展)标准24-19 8820ADPT24-19
