产品详细内容
产品型号: 63-3118-41
产品品牌: Hirose
功能
- HR30 series small waterproof plastic connector with full water resistance (as specified). Follow the instructions for the assembly method and necessary jigs and tools to achieve waterproof performance. The HR30 series is a waterproof connector, but not for underwater . According to the specifications, the connector must be kept in a water depth of 1 m for 0.5 hours with the connector fitted.
规格
- Connector shape plug
- Rated current 2A
- Rated voltage (AC) 100 VAC
- Rated voltage (DC) 140 VDC
- Number of Poles 6
- Operating temperature range -25°C to +85 °C
- Waterproof Performance IP68
- Withstanding Voltage 300 V (max)
- Lock Method Push Pull
- connection method soldering
- Cable Outer Diameter 4.6 mm
- Number of Insertion and Removal 1000
- No Finger Protect
- No shield function
- contact plated metal
- Salt spray time (corrosion resistance) 48h Exterior material Plastic
- [Mechanical Performance]
- Contact Sex Female
- Housing Color Black
- Opening Direction Straight Key None
- [Product Size]
- Applicable Wire Size AWG26
- Body Length 12.6 mm
- Body Width 12.6 mm Body Height 29.8 mm
相关产品推荐
您可能还对以下产品感兴趣
电子元件控制设备

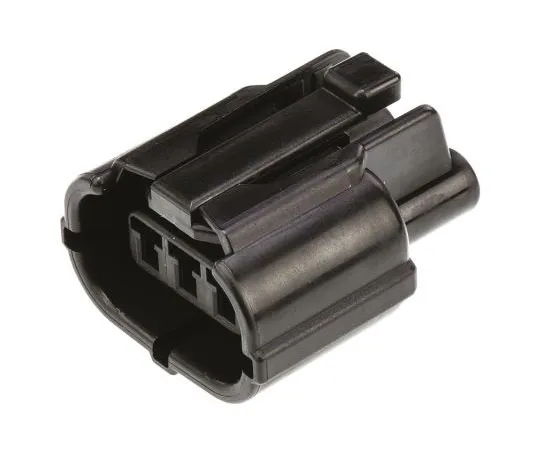

63-7682-52 TE Connectivity Econoseal J 070 Mk II男性连接器外壳，4.8毫米间距，3路，1列 2822366-1
型号: 63-7682-52
品牌: TE Connectivity
电子元件控制设备

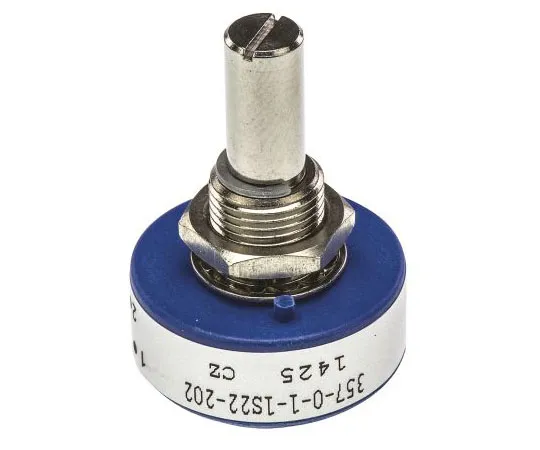

63-7560-29 Vishay 1钢连续旋转导电塑料电位器，直径6.35毫米。轴，2kΩ，±20%，1W,线性 357B0202MAB251S22
型号: 63-7560-29
品牌: Vishay
电子元件控制设备
电子元件控制设备

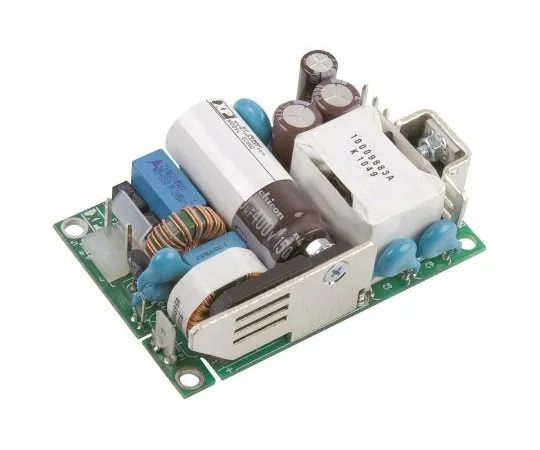

63-6851-89 AC/DC Converter 48 V dc 1.25 A 60 W Open Frame Y ECS60US48
