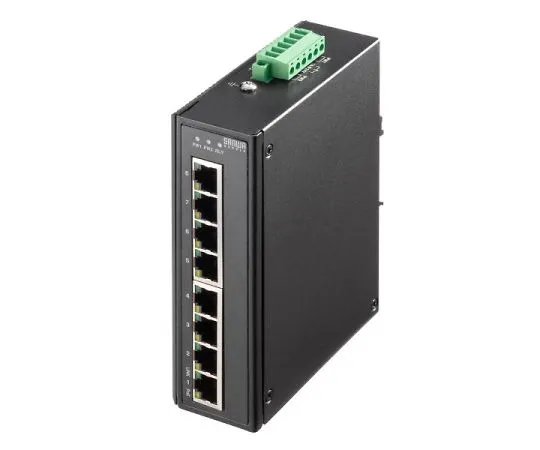

规格

• Color: Black
• Specifications: IEEE802.3af/at, IEEE802.3 (10BASE-T) IEEE802.3u (100 BASE-TX) IEEE802.3ab (1000BASE-T) IEEE802.3x (Flow control for Full-Duplex)
• Compliance: FCC Part 15B Class AVCCI Class AICES-003EN 55032IEC 61000-4-2 ESD: Contact: 6KV; Air: 8KVIEC 61000-4-3 (Radiated RFI) IEC 61000-4-4 EFT: Power: 2KV; Signal: 2KVIEC 61000-4-5 Surge: Power: 2KV; Signal: 2KVIEC 61000-4-6 (Induced RFI) IEC 61000-4-8 (Magnetic field) EN 55035 (Electromagnetic compatibility of multimedia equipment-Immunity requirements)CISPR 32 (Electromagnetic compatibility of multimedia equipment) EN 60068-2-6 (Sinusoidal Vibration Testing) EN 60068-2-27 (Shock Testing) EN 60068-2-32 (Free Fall Testing) UL 60950-1 (Information Technology Equipment) (voltage Testing) LVD (EN62368-1) (The Low Voltage Directive Testing)
• access methods: CSMA/CD
• switching methods: Store & Forward
• Maximum transmission rate: 1000Mbps (1000BASE-T)
• Port configuration: 1000BASE-T/100BASE-TX/10BASE-T, PoE/PoE+
• jumbo frames: supported (9Kbytes)
• Buffer memory: 1.0Mbytes (dynamically allocated per port)
• MAC address tables: 4K
• Size: W39.6 x D105 x H142mm (including DIN rail parts)
• Weight: about 549 g (including DIN rail parts)
• Power consumption: 5.76 W maximum
• Environmental Conditions: Operating Temperature/-40~75°C, Operating Humidity/5~95% (non-condensing) Storage Temperature/-40~85°C, Storage Humidity/5~95% (non-condensing)
• Number of ports: 8 ports
• Communication mode: Full duplex/Half duplex
• PoE support: Yes
• PoE-capable portsOutput: at Specifications: 30 W/1 port (max.) af Specifications: 15.4 W/1 port (max.) Up to 200 W total for all ports
• PoE power supply system: Alternative A
• Flow control control: Yes
• switch fabric: 16Gbps
• Maximum packet forwarding capacity: 11.9Mbps
• Filtering rates: 1488000 packets per second (1000Mbps), 148800 packets per second (100Mbps), 14880 packets per second (10Mbps)
• AutoMDI/MDI-X: supported
• autonegotiation: support
• Power supply: 48~56VDC (redundant power supply) * Can operate with only 1 power supply input. Can support redundant power supply by inputting 2 systems.
• Enclosure Material: Metal
• Wall mount: Yes * When mounting on the wall, remove the DIN rail mount from the body.
• Fan Specification: Silent Fanless
• MTBF: 1, 315, 858 Hours (25°C)/531, 289 Hours (50°C)/198, 714 Hours (75°C)
• VCCI standards: VCCI Class A
• Dustproof Standard: IP30
• Relay output: ON when 2 power supply lines are input * Use a device connected to the relay output with 1.0 A@ 24 VDC or less.
• Wall Haul Size: W9.5 x D9.5mm
• Compatible DIN rail: Compatible (35 mm)
• Set Contents: Main Unit, DIN Rail Mount (factory-installed), Terminal Block x 1, Wall Mount Set (Clasps x 2, Mounting Screws x 4), Instruction Manual
