产品详细内容

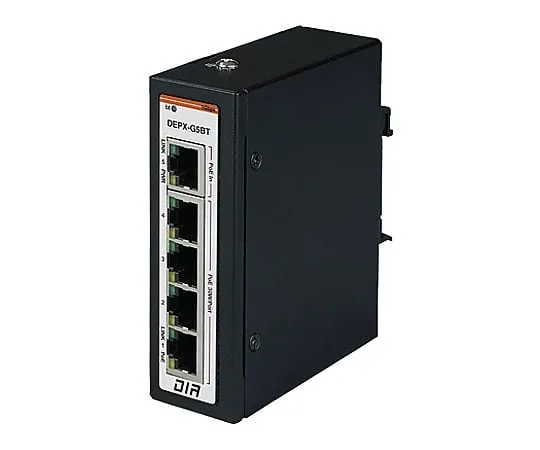

产品型号: 67-9307-23
产品品牌: Diatrend Corporation
功能
- Up to 4 PoE connections for a total of 500 meters
- IEEE802.3af/at/bt compliant
- No need for main unit power supply
规格
- Standards: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3 at, IEEE802.3bt
- Interfaces: 10Base-T, 100Base-TX, 1000Base-T
- 5 PoE ports (Powered/Port 5, Powered/Port 1~4)
- PoE power supply system: 2-pair Alternative-A (1/2, 3/6)
- PoE Power Supply: Ports 1 to 4/30W (IEEE802.3af/at compliant), 4 ports total/60 W (@90 W input)
- Transmission speed: 1000Mbps
- Power supply: PoE receiving power (IEEE802.3 at/bt) Maximum power supply varies depending on PoE receiving power (input power)
- Power consumption: 4 W without PoE, 64 W with PoE
- Operating temperature range: -40~75°C
- Protective Structure: IP30 Steel
- Mounting Method: DIN Rail Mounting, Wall Mounting
- External Dimensions (mm): W32 x D81.5 x H103.5
