产品详细内容

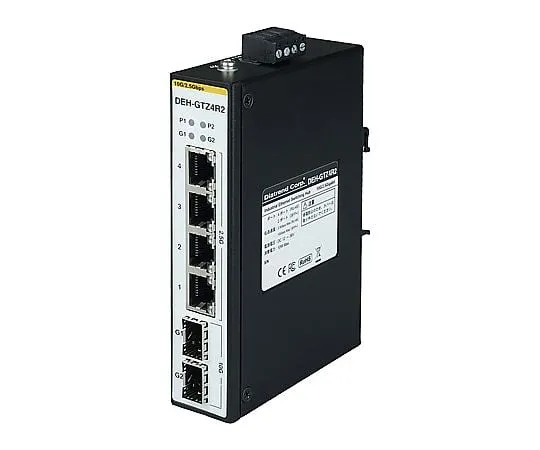

产品型号: 67-9307-19
产品品牌: Diatrend Corporation
功能
- Industrial Ethernet switching hub with excellent environmental resistance and durability
- SFP+ ports included
- Can also be used as an optical repeater for converting between optical signals and wired LAN
规格
- Ethernet Ports: 4
- Number of SFP+ ports: 2
- Transmission speed: Optical fiber/10Gbps, Ethernet/2.5Gbps
- Network: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3bz, IEEE802.3ae
- Interfaces: 10Base-T, 100Base-TX, 1000Base-T, 2.5GBase-T, 1000Base-X, 10GBase-R
- Power supply: 12~36 VDC (redundant power supply, reverse polarity protection)
- Maximum power consumption: 10 W
- Operating temperature range: -40~75°C
- Material (Case): IP40 Steel
- Mounting Method: DIN Rail Mounting
- External Dimensions (mm): W28 x D88 x H130
相关产品推荐
您可能还对以下产品感兴趣
工具和用品

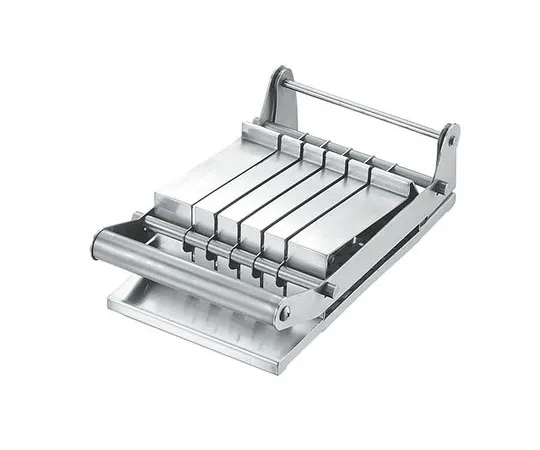

63-1702-87 KO Cutlet Cutter with 5 Flutes (Special Order) 383012
