产品详细内容

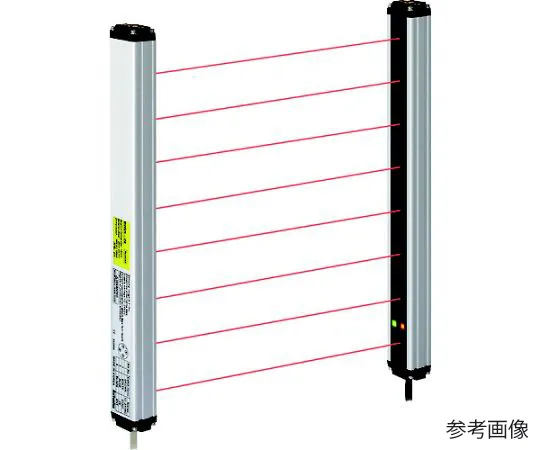

产品型号: 67-5566-50
产品品牌: MARUYASU DENGYO CO.,LTD.
功能
- It achieves 7m long range detection.
- Detection stability is improved by minimizing the undetected area.
- For candy transfer line detection.
规格
- Output Format: NPN Open Collector Output
- Detection distance (m): 0.1~7
- Length (mm): 22.6
- Width (mm): 28.6
- Height (mm): 580
- Optical axis width (mm): 140~940
- Optical axis pitch (mm): 20
- Number of optical axes (pcs): 8~48
- Protection rating: IP65 (IEC standard)
- Detection Method: Transparent
- Detected Object: Opaque (φ30 mm or more)
- Power supply voltage: 12-24 VDC
- Current consumption: 80 mA or less
- Protection rating: IP65 (IEC standard)
- Cord length: 0.3 m
- Self-diagnosis function, mutual interference prevention function, external diagnosis function built-in
- CE
- Material/Finish: Aluminium
- Country of Origin: South Korea
- Securities Code: 208-0998
