产品详细内容
产品型号: 65-9567-54
产品品牌: NITTO KOHKI CO., LTD.
功能
- For low pressure.
- Compact, lightweight and one-touch connection with emphasis on workability.
- Piping connection for fusing work can be made from the container to the blowpipe.
- The body is chrome plated and has excellent corrosion resistance. In addition, the plug is heat-treated to improve durability.
- In order to prevent misconnection, the fitting size is changed for oxygen and fuel gas, and the oxygen sleeve is colored with chromium plating in pursuit of safety.
- Standardized mounting shapes for a wide range of fusing applications.
规格
- Opposing Hose Size: 1/4/5/16
- Mass (g): 24
- L(mm):63
- C(mm):19.1
- A(mm):30
- ΦH(mm):13
- ΦJ(mm):9.5
- ΦB(mm):4
- Valve Structure: One Way Opening/Closing Type
- Applicable fluids: oxygen, fuel gas
- Body Material: Steel (Chrome Plated)
- Maximum Working Pressure (MPa{kgf/cm2}): 0.7{7}
- Pressure Capacity (MPa{kgf/cm2}): 1.0{10}
- Seal Material: Nitrile Rubber
- display symbols: NBR
- Operating Temperature Range (°C): -20 to +80
- Remarks: Standard Material
- Mounting Shape: Hose Nipple
- Type: Plug
- Specifications: Backflow Prevention Type
相关产品推荐
您可能还对以下产品感兴趣

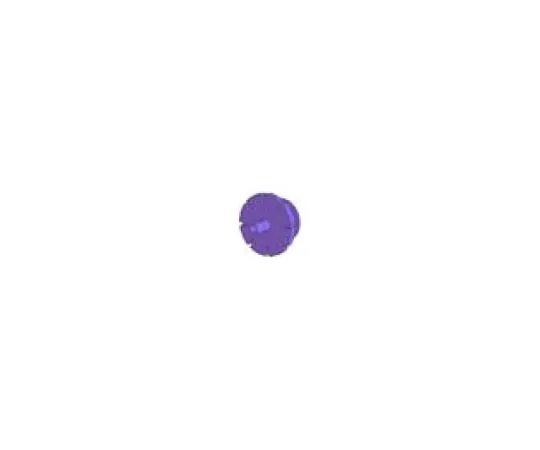

![67-0413-14 [Made to Order] Filter Case Cover w/O-Ring B2880](https://www.hgauge.com/wp-content/uploads/2025/10/2cd9891b9b9ca4585958b7cc5c3d7387.webp)
