产品详细内容

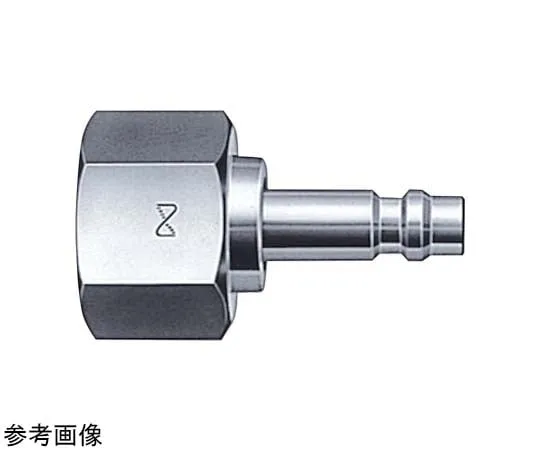

产品型号: 65-9009-12
产品品牌: NITTO KOHKI CO., LTD.
功能
- For low pressure.
- Compact, lightweight and one-touch connection with emphasis on workability.
- Piping connection for fusing work can be made from the container to the blowpipe.
- The body is chrome plated and has excellent corrosion resistance. In addition, the plug is heat-treated to improve durability.
- In order to prevent misconnection, the fitting size is changed for oxygen and fuel gas, and the oxygen sleeve is colored with chromium plating in pursuit of safety.
- Standardized mounting shapes for a wide range of fusing applications.
规格
- Application: For oxygen torches
- Mass (g): 30
- L(mm):36
- C(mm):19
- H (mm): Hex 19
- ΦB(mm):4
- T(mm):M16×1.5
- Valve Structure: One Way Opening/Closing Type
- Applicable fluids: oxygen, fuel gas
- Body Material: Steel (Chrome Plated)
- Maximum Working Pressure (MPa{kgf/cm2}): 0.7{7}
- Pressure Capacity (MPa{kgf/cm2}): 1.0{10}
- Recommended maximum tightening torque (N · m{kgf · cm}): 12{122}
- Mounting Shape: Female Thread
- Type: Plug
