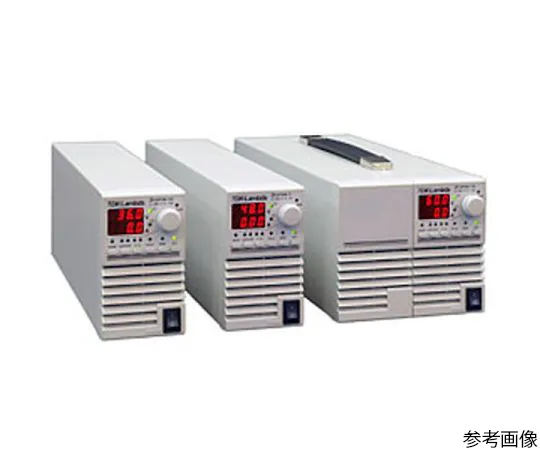

规格

• Rated output voltage (VDC): 20
• Rated output current (A): 40
• Rated output power (W): 800
• Operating temperature: 0 ~ 50 degrees Celsius, at 100% load
• Body mass (kg): about 5.8
• Dimensions (mm/without projections): 140 x 124 x 350
• High efficiency/high power factor (active filter method)
• Safety standards: CE Marking (LVD Directive/EMC Directive) UL 3111 -1 Listed, EN 61010 -1
• Equipped with RS 232/RS 485 serial communication standard
• GPIB interface option support
• External analog controllable
• Series operation (up to two), master-slave parallel operation (up to five) possible
• Equipped with last setting memory function
• Equipped with automatic/safety restart function
• RoHS compliant
