规格

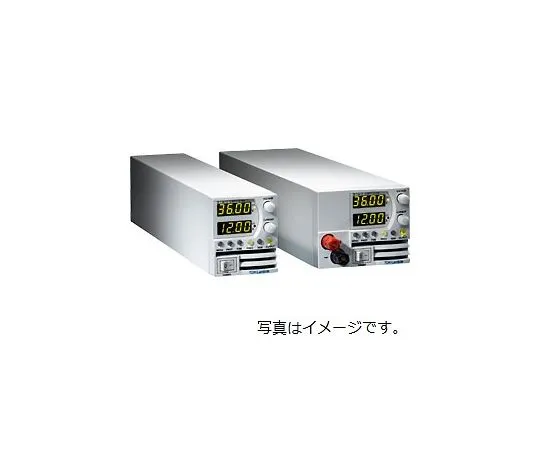

• Ultra-compact, high power density, height 2 U bench-top type (* Rack mountable in 19 inch dedicated case) Ideal simulation for evaluating systems and equipment that use solar cells as source Equipped with function generator for evaluating electronic devices Low ripple noise Worldwide compatible safety design USB, RS -232, RS -485 interfaces Standard (* LAN, GPIB, insulated analog board mountable (optional) External analog controllable Master/Slave parallel operation capable (up to 6 units) Equipped with last setting memory function
• (The settings are stored in memory, and even if the power is turned off, the settings are stored) Equipped with Auto Start and Safe Start
• Input voltage range: 85 ~ 265 VAC (47 ~ 63 Hz)
• Forced air cooling with built-in cooling fan
• Operating ambient temperature: 0 ~ 50 degrees Celsius
• Compliance with safety standards UL 61010 -1, EN 61010 -1, IEC 61010 -1 each certification UL 60950 -1, EN 60950 -1
• Size (mm)
• (W x H x D)83 x 70 x 350
• (Same size for both 200/400/600/800 W4 types)
• External control ON/OFF controllable
• Output GOOD signal 4 -5 V: OK, 0 V: NG, 500 ohm series resistance
• Output Voltage Programmable Voltage Control/Resistance Control
• Output current programmable voltage control/resistance control
• Remotely Sensable
• *Note: The unit does not come with a power cable. Z-J (Japanese specification) sold separately is required.
• RoHS compliant
