产品详细内容

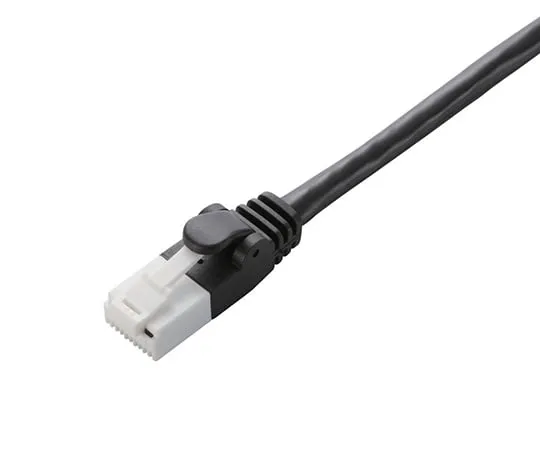

产品型号: 64-2320-05
产品品牌: ELECOM CO., LTD
功能
- This is a LAN cable with a double structure that adopts a claw prevention protector and a connector that is highly durable against bending, so the claw will never break under normal use.
- * Passed bending inspection 1000 times (Erecom verification) * Prevents the cable from falling off due to broken claws, and can be firmly fixed to the LAN port for a long time.
- Standard LAN cable compatible with Category 6.
- Even gigabits such as 1000BASE-TX and 1000BASE-T can provide a stable network environment.
- Guaranteed 250 MHz frequency band, ideal for high-speed Gigabit Ethernet communications.
- Since it is a yori wire type without cross interposition, it is soft and easy to handle and easy to lay in a narrow place.
- Uses a slim connector that does not interfere with adjacent ports.
- Has flame retardancy that passes the 60 degree tilt test (JIS C 3005).
- It is an environmentally friendly product that complies with the EU RoHS Directive (Restriction of Use of Specified Hazardous Substances in Electrical and Electronic Equipment) (10 substances).
规格
- 颜色:黑色
- 接口:RJ -45连接器
- 环境考虑:符合欧盟RoHS指令 (10种物质)
- 标准:支持Cat6 (兼容10BASE-T/100BASE-TX/1000BASE-T/1000BASE-TX)
- 传输速度:1 Gbps
- 传输带宽:250 MHz
- 电缆长度:15 m
- 电缆重量:5.5 mm
- 核心数量:8
- 连接方法:直线连接
- 赖逆导体 (双绞线) :○
- 外部护套 (胶囊) 材料:PVC
- 导体配置:水平导线
- 带有连接器:两端带有连接器
- 模压连接器:是
- 超薄连接器:是
- 带防断钉保护罩的接头:是
- 包装形状:聚合袋 (环保类型)
- 钉子未断连接器:是
- PoE:是的
