产品详细内容
产品型号: 3-5287-21
产品品牌: AS ONE Corporation
功能
- Antibacterial and deodorant HEPA filter keeps the booth clean with clean air that cuts more than 99.97% of particles larger than 0.3 μm.
- It is compact, inexpensive, and can create a locally clean environment.
- It comes with a germicidal lamp and can sterilize inside the booth.
- It is efficient beca 2 people can work at the same time.
- LED lighting is d to save power.
规格
- Size (mm): 900 x 765 x 811
- Effective working surface dimensions (mm): 814 x 614
- Material: Work Surface/SUS304, Front Door/Polycarbonate, Side Window/Aluminum Composite Plate, Frame/Aluminum
- Prefilter: Modacrylic/Polyester
- Dust collection efficiency: 99.97% or more (0.3 μm particles)
- Power Supply: 100 VAC 50/60Hz, Cord Length 1.5 m (3P Plug)
- HEPA Filter (mm): □200 x 2 Sheets
- Processing air volume (m3/min): 2.0
- Wind velocity (m/s): 0.6
- Power consumption (W): 138
- Lighting (W): LED lamp 7 W x 2, germicidal lamp 15 W x 1
- Weight (kg): 45.6
- Opening Air Volume (m3/min) * 1:1.1
- Cleanliness (class) * 2:100
- *1 * 2: Measured value when both doors are lowered to the lowest stage (opening 30 mm), opening air volume is the average value of opening, and degree of cleanliness is the value of center of working surface and height of 35 mm.
- *Air blown out from the ceiling flows according to the degree of opening of the door. There are no partitions such as air curtains in the interior space.
相关产品推荐
您可能还对以下产品感兴趣
研究设备
研究设备

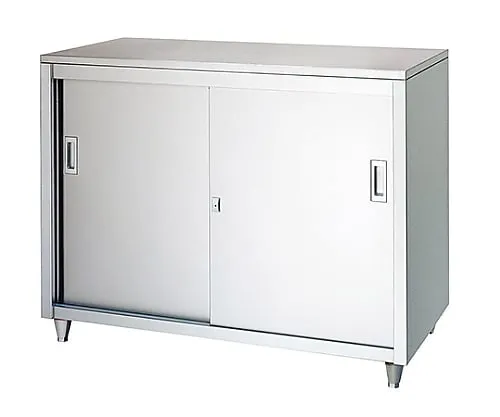

61-0013-67 搭配储存调整(不锈钢 (SUS430) ，1级式，不锈钢门规格) 900 x 450 x 950 LA-9045
