规格

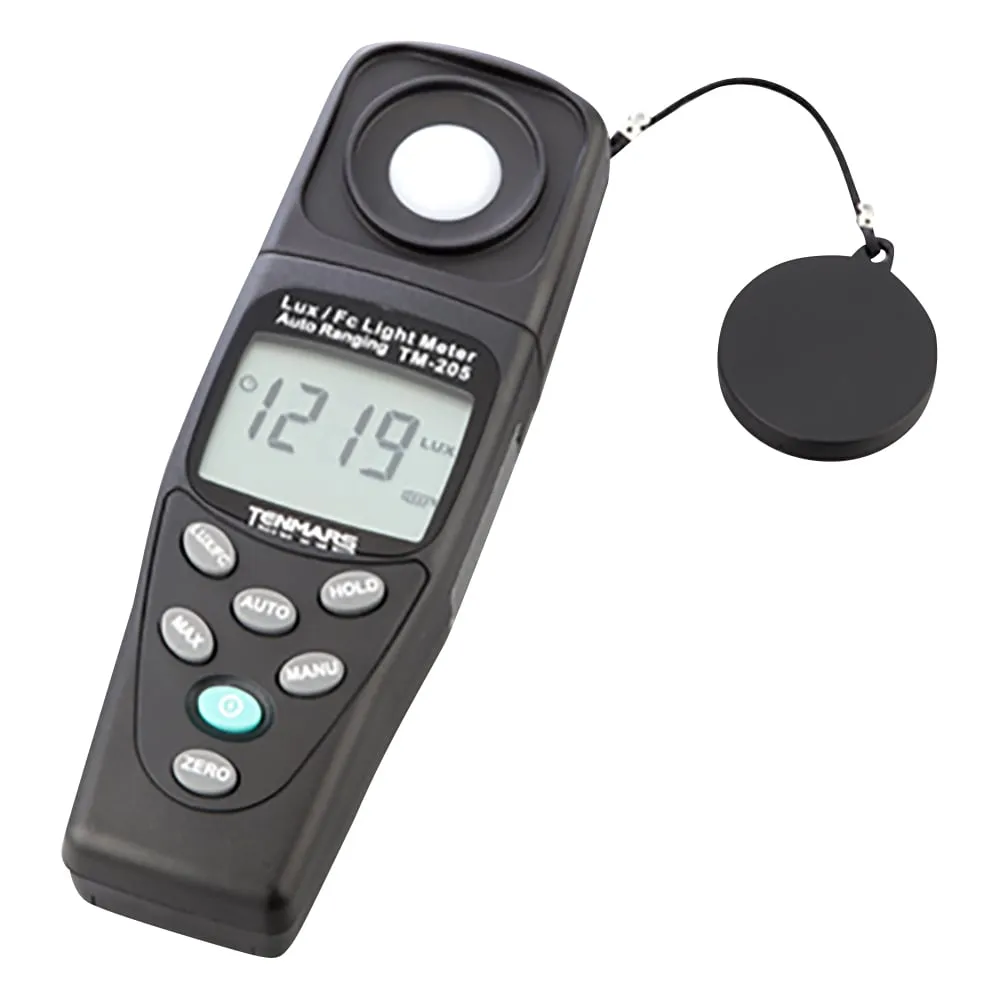

• illuminometer
• Measuring range (Lx): 200, 2000, 20,000, 200,000
• Resolution: 20 Lx/0.01 Lx, 200 Lx/0.1 Lx, 2000 Lx/1 Lx, 20,000 Lx/10 Lx, 200,000 Lx/100 Lx
• Accuracy: +/- 6% (LEDs can not be measured)
• Sampling: 2.5 times/second
• Features: Maximum/Minimum Display, Data Hold Auto Power Off
• Power supply: 1 x 006P (9V) battery (included for testing)
• Size: 56 x 38 x 172 mm
• Weight: 250 g
• Sensor: Silicon photodiode
• Operating temperature and humidity range: -10 to + 50 degrees C, 80% RH
• Standard: Complies with JIS C 1609: 1993 "Class A General Model"
• *Proof-of-calibration products are Azwan's original service in which measuring instruments are calibrated at the time of shipment by Azwan or Azwan's subcontractors and a proof of calibration is issued.
• The "JCSS Certificate of Calibration" includes a certificate of calibration (certificate of calibration and inspection certificate). Traceability chart is not included.
• The proofreading certificate is in Japanese.
