产品详细内容

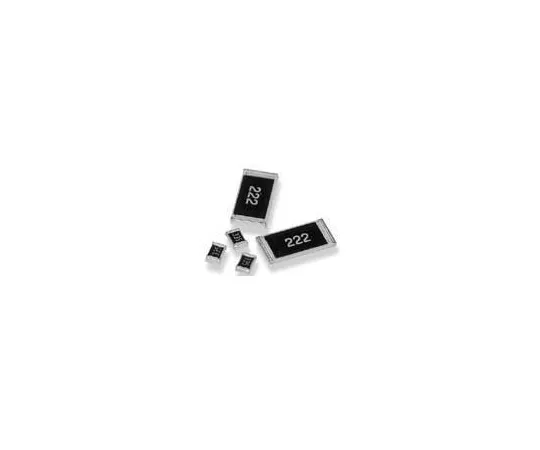

产品型号: 63-7038-99
产品品牌: TE Connectivity
功能
- 0603 Type CRG0603 Series SMD
- The CRG series thick film resistors with high output power for size are ideal for industrial and general applications. Tolerance is 1% and 5% in the range of 1 Ω → 10 MΩ. Also includes 0Ω links. The short lead structure and low capacitance make it ideal for most applications, including high frequency operation. 7 different package sizes Terminal Finish: Brushed Tin Moisture Resistance Level: Level 2
规格
- 数量:1套 (5000个)
- 电阻:10kΩ
- 技术:厚膜
- 包装/外壳:0603 (1608M)
- 容忍度:±1%
- 功率等级:0.1W
- 温度系数:±100ppm/°C
- 系列:CRG
- 最低工作温度:-55°C
- 最高工作温度:+125°C
- 代码号:134-5445
