功能

• EN/ISO13850:2006
• Do not use the XY2CB switch if you need to bend the trip wire during installation. You can use the XY2CE switch.　In this case, the total angle at which the trip wire bends should not exceed 180 degrees.

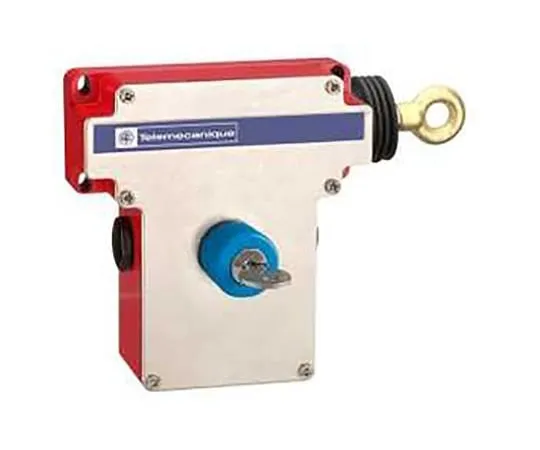

• Telemecanique XY2CE/XY2CB Rope Switch for Emergency Stop
• These emergency stop trip wire switches reduce the risk of worker injury and damage to machinery and products being manufactured.　If the normal emergency stop action is not available, it can be activated by a single manual operation. It also works if the trip wire is damaged.
• The switch has a built-in + side open operating contact, and the + side action causes the switch to operate. The switch is latched in the operating position (N/C safety contact open).　The function of the N/O contact is to provide a reset button to close the signal only safety contact again, manual operation of the control device in the machine start circuit away from the trip wire switch is required to restart the machine The recommended distance to the cable support is 15 m (the recommended distance for the model XY2-CB30 is 20 m) The XY2CE 1 A296 comes with a pilot light (direct power supply)
