产品详细内容

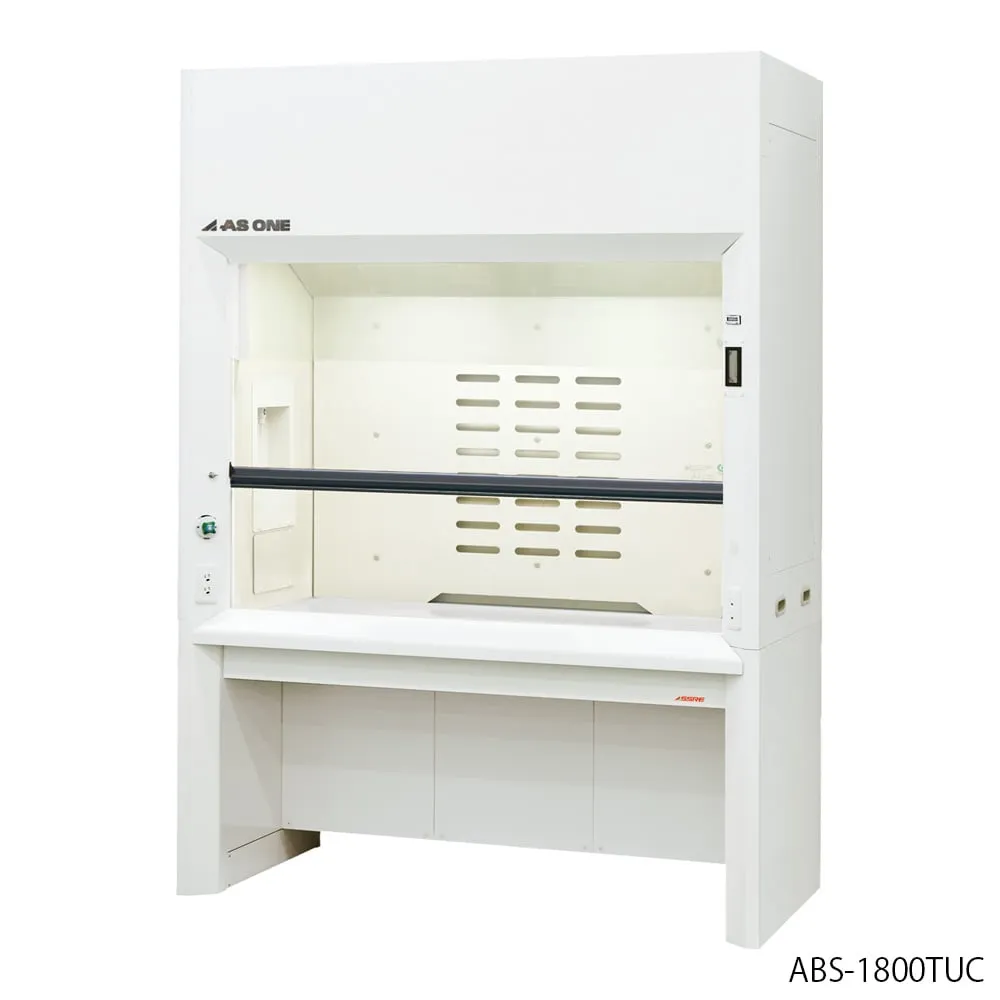

产品型号: 3-3924-21
产品品牌: AS ONE Corporation
功能
- A type that combines a dry scrubber on the top of the hood.
- Suitable for treatment of organic gas and water-insoluble gas.
- For Organic
规格
- Specifications: Standard
- External Dimensions (mm): 1200 x 830 x 2550
- Inner Dimensions (mm): 950 x 605 x 1100
- Weight (approx. kg): 429
- Control wind speed: 0.5 m/s (Opening height of sash at work: 400 mm)
- Material: Exterior/Steel (Powder Coating Finish), Interior/Chemical-Resistant/Heat-Resistant Board (Flame Retardant/Phenolic Resin Laminated Board), Work Surface/Epoxy Resin Top Plate Integrally Molded Product (32 mm Thickness)
- Lifting Sash: Tempered Glass (5 mm Thickness), with Balance Weight Type Opening Limiting Key (Height 400 mm), Handle/ABS Resin
- Hydrant: Chemical-Resistant Coating Remote Control Type/1 Location Water Supply Connection Opening G1/2 (Female Screw Stopper)
- Drain Port: Drain Connection Port 25 A with Recessed Resin Sink and Drain Trap
- Static pressure (exhaust): 290 Pa
- Outlets: 2 (100 VAC 15 A with 2 connected grounding)
- lighting: LED fluorescent
- Operation Switch: Touch Panel Lighting/Fan
- safety features: exhaust airflow display
- Exhaust Connection: PVC (Vinyl Chloride Resin) Volume Damper Phase Flanged
- Power connection: Terminal block with electrical box
- Exhaust gas treatment equipment with a set of dry scrubber units on top
- *Shipping, delivery, installation and assembly costs are required separately. Please contact us.
- *Exhaust fan is not included. Please contact us.
