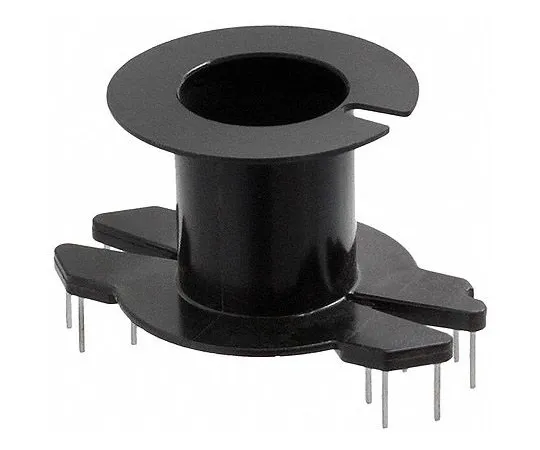

• EPCOS B65888 RM 14 Winding
• EPCOS RM 14 Winding is made of black GFR thermosetting plastic and conforms to IEC60085: H standard. The B65888C1512T001 version is intended for power applications and is made of GFR polyterephthalate in accordance with IEC60085: F. Both materials conform to the UL94 V-0 standard. The B65888 series winding can be soldered and the solder heat resistance conforms to IEC 60068-2-20. The pins are square, and there are 10 pin items and 12 pin items.　The RM 14 winding is ideal for use in automatic positioning machines and allows for low-cost manufacturing of induction components. The inner diameter is slightly conical and extremely precise. It fits neatly into the hoisting machine and does not slip. The long wire catch nose ensures that all wires are wound correctly into the wire guide slots, even at high winding speeds. It has a pin-less flange to ensure the correct placement of the winding during winding. EPCOS RM winding is also ideal for manual winding.
