功能

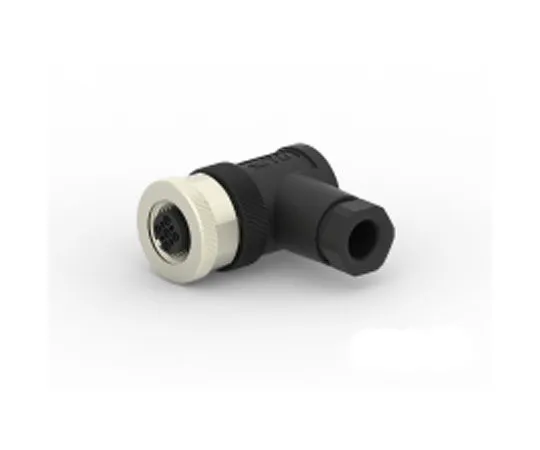

• M12 Field Installable A Cord Connector
• Unshielded M12 connector with TE connectivity is screw locked and can be securely connected.　This connector has thread terminals and cable ground and is field service compatible.　This rugged connector has a PBT housing and gold-plated contacts to ensure secure connection.
• Features and Benefits: IP67 ingress protection rating A code for DeviceNet, IO link and Profibus Straight or 90° cable entry Cable mount plugs and sockets in 3, 4 and 5 pole M12 x 1 mm thread Robust and compact design offering maximum performance Easy to assemble, no special tooling required Ideal for jumper cable assemblies 360° shielding versions for enhanced performance PG7 gland = 4-6 mm cable acceptance PG9 gland = 6-8 mm cable acceptance
• Applications
• The M12 Euro-style connectors are ideally suited to commercial and industrial applications
• The connectors are traditionally used when connecting to sensors, actuator valves, and cylinders
• Some of the most common areas are
• Gold plated on nickel contacts A cord polarity IP67
• Use: The TE T411 series of connectors have an IP67 ingress rating
• This means the connectors are totally sealed from dust and debris
• They are waterproofed and are protected from powerful jets of water from all directions and even partial submersion
• FAQ
• The M 67 connector is a European specification sensor connector ideal for industrial and factory automation connections.　The M12 connector features industry-standard A codes and is suitable for process control and commercial electronics applications.
