产品详细内容

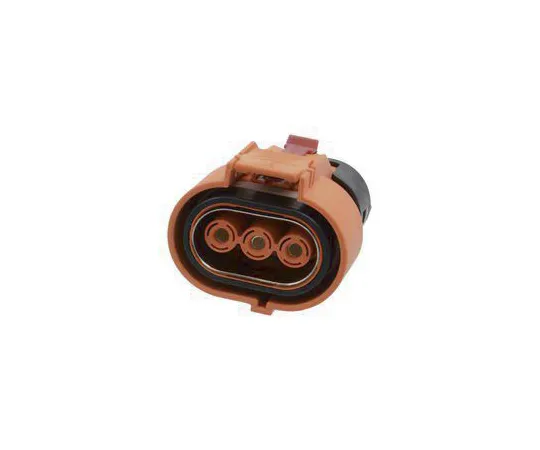

产品型号: 63-6942-75
产品品牌: Amphenol
功能
- ePower-Lite Connector, U-Coding
- Amphenol's ePower-Lite is a small, lightweight connector for hybrid electric vehicles. The rugged heat-resistant shell ensures that the connector dielectric is protected. This connector can be installed and repaired on site and has a CPA to prevent accidental occlusion. This low resistance connector with RADSOK technology features high current, low T-rise and low voltage drop. With its compact design and space-saving features, ePower-Lite is ideal for EV and hybrid applications.
- Features and benefits: Compact, lightweight connector U coding 100 + insertions/removals Durable Waterproof: IP67 Contact protection: IEC60529 Fire retardant: UL94V-0
规格
- 件数:1
- 范围:RADSOK
- 系列:EL
- 连接器类型:RADSOK插头 (带HVIL)
- 行数:1
- 联系人数量:3
- 电缆尺寸:2.5 mm 2
- 当前评级:7.5到70 A
- 工作电压:800 V ac
- 连接器性别:男
- 联系人性别:女
- 密钥类型:U
- 工作温度最小值:-40摄氏度
- RoHS合规性状态:合规性
- 证券代码:124 -4100
