产品详细内容
产品型号: 63-6940-42
产品品牌: RS PRO
功能

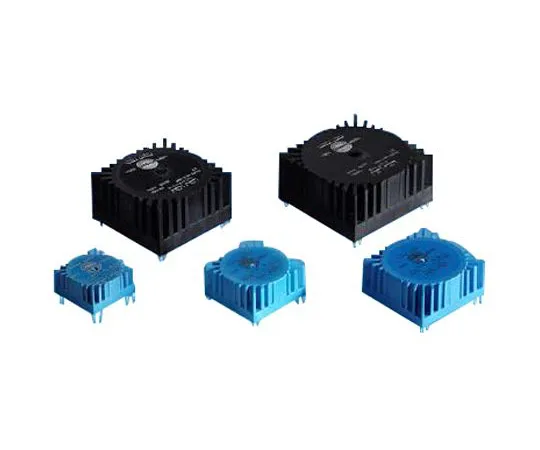

- RS Pro Toroidal PC Transformer 1.6 VA → 25 VA
- The RS Pro Toroidal PC transformer is a compact and lightweight transformer with high efficiency and low profile. These toroidal transformers feature low iron loss and low induction noise. Dual 115 V primary windings that can be connected in parallel or in series.
- Features • Low stray magnetic field Reduction of standby current Test voltage 1st order -2 order 4.0 KV Easy mounting - M4 Center bush ambient operating temperature: +60 °C maximum Fully compliant with RoHS and R units
规格
- 主电压等级:2×115V
- 二次电压等级:2×12V
- 功率等级:1.6VA
- 身高:18.5mm
- 重量:82g
- 尺寸:39.6 x 39.6 x 18.5mm
- 最大工作频率:50Hz
- 安装类型:通孔
- 最高温度:+60°C
- 代码号:124-3842
