产品详细内容

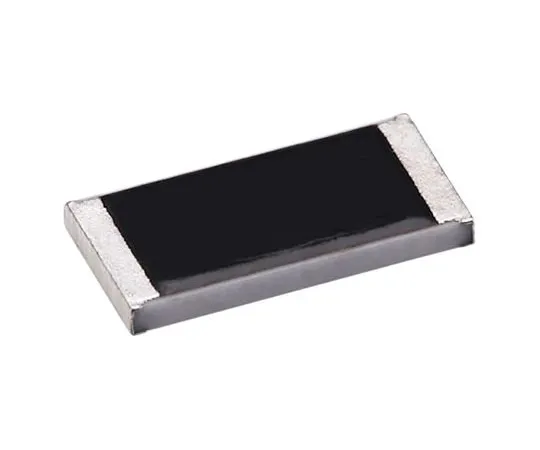

产品型号: 63-6919-99
产品品牌: TE Connectivity
功能
- TE Connectivity CPF Series 0603 Precision Resistors (75 → 249)
- TE Connectivity CPF series thin film precision resistors exhibit high stability and precise accuracy. This chip resistor has a resistance tolerance of at least 0.1% and a temperature coefficient of resistance (TCR) value as low as 15 ppm/°C. CPF precision resistors consist of an alumina substrate and a nichrome (NiCr) resistance layer. 100% matte electrotin-plated finish. With a variety of standard case sizes, this chip resistor has uniformly accurate dimensions for easy placement.
- Features and Advantages: Temperature Range: -55 → +155 °C High stability High precision Accurate dimensions Various resistance values to suit all applications Applications:
- Suitable applications for CPF precision resistors include industrial control, communications, instrumentation, and medical applications.
规格
- Quantity: 1 reel (1000 pieces)
- Resistance: 86.6 ohms
- Package/Case: 0603
- Tolerance: +/- 0.1%
- Rated power: 0.063 W
- Temperature factor: +/- 25 ppm/deg.
- Technology: Thin film
- Dimensions: 1.6 x 0.8 x 0.45 mm
- Length: 1.6 mm
- Depth: 0.8 mm
- Height: 0.45 mm
- Series: CPF
- Operating temperature Min: -55 degrees C
- Operating temperature Max: + 155 degrees C
- Case Style: Mold
- RoHS compliance status: Compliance
- Securities Code: 123 -9889
相关产品推荐
您可能还对以下产品感兴趣
电子元件控制设备
电子元件控制设备

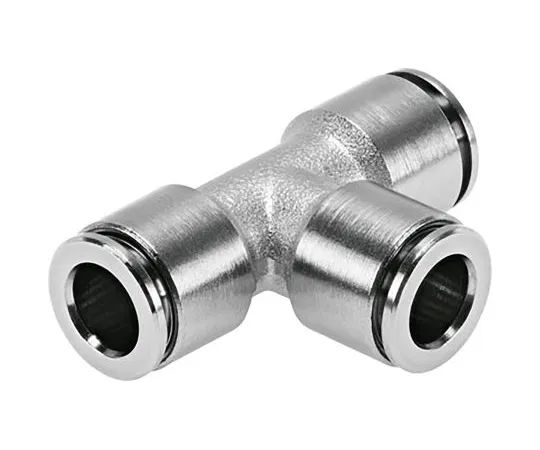

63-6995-74 Festo气动Tee管到管适配器，推入6mmx推入6mmx推入4mm,食品级，耐化学品 NPQH-T-Q6-Q4-P10
型号: 63-6995-74
品牌: Festo
电子元件控制设备
电子元件控制设备

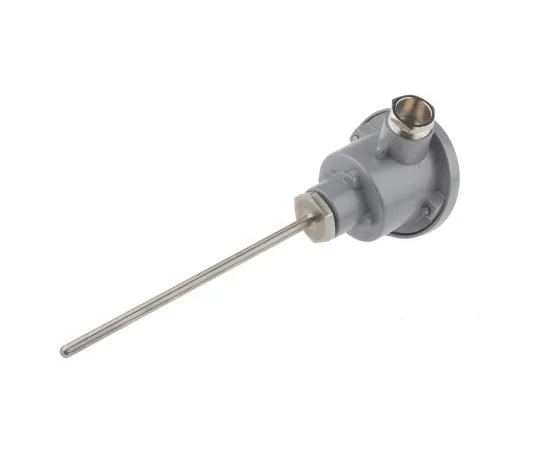

63-5155-86 RS PRO 4线PT100传感器， -100°C min+450°C max, 150 mm探针长度x 6 mm探针直径 872-2739
