产品详细内容
产品型号: 63-6916-96
产品品牌: TE Connectivity
功能

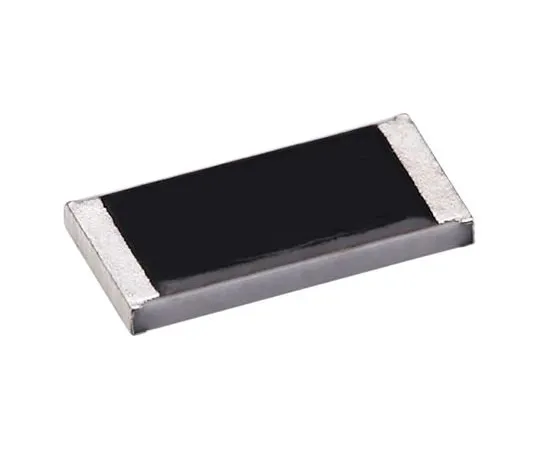

- 0805 TE Connectivity CPF Series Precision Resistors 71 → 294 Ω
- TE Connectivity CPF precision resistors consist of an alumina substrate and a nichrome (NiCr) resistance layer. 100% matte electrotin-plated finish. With a variety of standard case sizes, this chip resistor has uniformly accurate dimensions for easy placement. CPF series thin film precision resistors exhibit high stability and precise accuracy. This chip resistor has a resistance tolerance of at least 0.1% and a temperature coefficient of resistance (TCR) value as low as 15 ppm/°C.
- Accurate dimensions • High stability • High precision • Various resistance values for all applications • Temperature range: -55 → +155 °C • Product application information • Suitable applications for CPF precision resistors include communications, industrial control, instrumentation, and medical applications.
规格
- Quantity: 1 reel (1000 pieces)
- Resistance: 133 ohms
- Package/Case: 0805
- Tolerance: +/- 0.1%
- Rated power: 0.1 W
- Temperature factor: +/- 25 ppm/deg.
- Technology: Thin film
- Dimensions: 2 x 1.25 x 0.55 mm
- Length: 2mm
- Depth: 1.25 mm
- Height: 0.55 mm
- Series: CPF
- Operating temperature Min: -55 degrees C
- Operating temperature Max: + 155 degrees C
- Case Style: Mold
- RoHS compliance status: Compliance
- Securities Code: 123 -9433
相关产品推荐
您可能还对以下产品感兴趣
电子元件控制设备

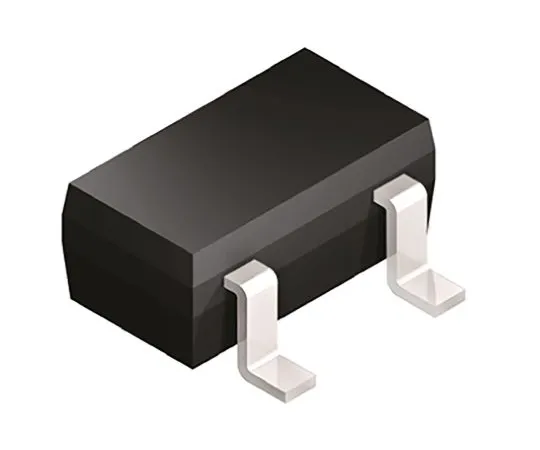

63-7001-45 BournsCDSOT23-T24CAN,双元素双向ESD保护二极管，3PinSOT-23 CDSOT23-T24CAN
型号: 63-7001-45
品牌: Bourns
电子元件控制设备

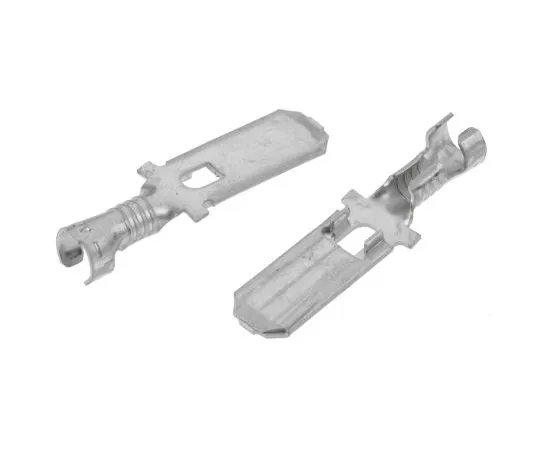

63-5017-07 TE连接快速。250系列压痕标签端子，0.5mm2至2.27mm2,20AWG至14AWG,6x 0.8mm。 179462-3
型号: 63-5017-07
品牌: TE Connectivity
电子元件控制设备
电子元件控制设备

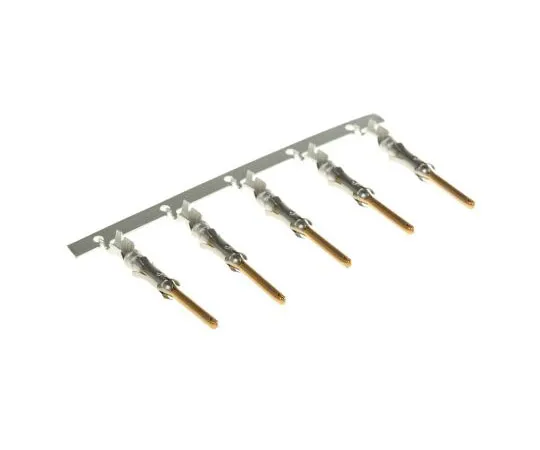

63-7676-14 TE ConnectionType III+Male Crimp Terminal Contact 16 AWG66098-9 66098-9
