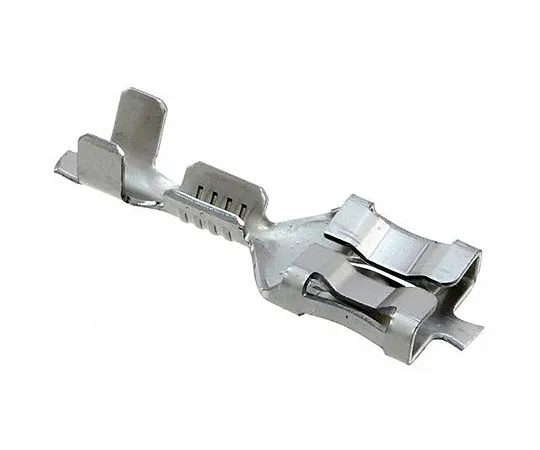

• TE Connectivity F Spring Contact FASTON Crimping Terminal
• This is an F spring contact FASTON receptacle crimping terminal for use with tab terminals 6.35 x 0.8 mm in size.　These FASTON crimped terminals have a low profile leaf spring design and can be easily inserted into the clamp tab with a low insertion force of less than 35 N.　The flared lead-in and machined low-friction surfaces of these FASTON LIF receptacles make it easy to insert tabs in hard-to-reach places.　Leaf spring roll in receptacle engagement eliminates contact by profile edges, increases normal force in the contact area, and improves reliability.　The leaf spring roll provides excellent wiping action during contact kneading.　Lock dimples ensure that tangled contacts are retained and prevent accidental removal.　It makes a clicking sound when it is firmly connected.　The tab guidance feature enables precise engagement and increases mechanical and electrical contact.　These F-spring FASTON LIF receptacles are made of sturdy nickel-plated steel, can handle a wide range of temperatures, and have excellent corrosion resistance.
• Features and Benefits: Sturdy and Durable Low Profile Design Low Insertion Force of less than 35 N Easily Insertable Tab Leaf Spring Design Profile Edge Eliminates Contact Reliable Connection with Lock Dimples Tab Guidance Capability Accurate Clamping Long Term Reliable Interconnection Use: F Spring Contact FASTON LIF Crimp Receptacle Terminal meets high quality and safety requirements and can be used in a variety of industrial applications.　Major applications include high temperature applications, small equipment, electric motors, power tools and power supply, washing machines and refrigerators, elevators and elevators, lighting and air conditioning.
