产品详细内容

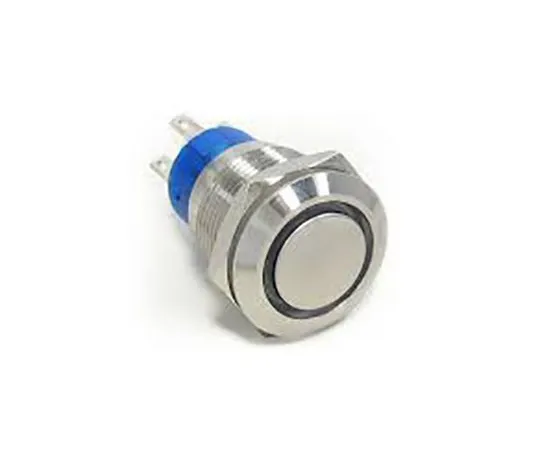

产品型号: 63-6902-06
产品品牌: TE Connectivity
功能
- RoHS/R units/UL certified • TE Connectivity AV22 series anti-bandal switch • TE Alcoswitch Anti-bandal switch is designed with industrial security and reliability in mind. AV22 series is a 22 mm panel mounting product. A variety of combinations are available, such as momentary, latch, and an option with LED display. The TE Alcoswitch series provides an excellent, long-life user interface solution for a variety of panel mounting applications.
- Features & Benefits: Shock resistant with superior appearance and usability for advanced customization. The rear mounting thin nuts provide an impact resistant design. There are various push button symbols, including the plane, ring, and power logo. Typical applications: Control and communication equipment Elevators and escalator instrumentation
规格
- Number of pieces: 1
- How the Switch Works: Latches
- Contact Configuration: Bipolar Double Throw (DPDT)
- Mounting Type: Panel Mount
- Panel cutout diameter: 22.2 mm
- Contact current rating: 3A
- Contact AC Rated Voltage: 250 V
- Rated voltage: 250 V ac
- Actuator Color: Silver
- Compliance: EU ELV compliance, R compliance, UL (E 46765)
- RoHS compliance status: Compliance
- Securities Code: 123 -6256
