产品详细内容
产品型号: 63-6900-79
产品品牌: TE Connectivity
功能
- RoHS/R units/UL certified • TE Connectivity AV19 series anti-bandal switch • TE Alcoswitch Anti-bandal switch is designed with industrial security and reliability in mind. AV19 series is a 19 mm panel mounting product. Various combination types are available, such as momentary/latch, LED display on/off, etc. The TE Alcoswitch series provides an easy-to-use user interface solution for a variety of panel mounting applications.
- Features & Benefits: Shock resistant with superior appearance and usability for advanced customization. The rear mounting thin nuts provide an impact resistant design. There are various push button symbols, including the plane, ring, and power logo. Typical applications: Control and communication equipment Elevators and escalator instrumentation
规格
- Number of pieces: 1
- How the Switch Works: Latches
- Contact Configuration: Bipolar Double Throw (DPDT)
- Mounting Type: Panel Mount
- Panel cutout diameter: 19.2 mm
- Contact current rating: 3A
- Contact AC Rated Voltage: 250 V
- Rated voltage: 250 V ac
- Illumination: Yes
- Actuator Color: Silver
- LED Color: White
- Operating temperature Min: -20 degrees C
- RoHS compliance status: Compliance
- Securities Code: 123 -6077
相关产品推荐
您可能还对以下产品感兴趣
电子元件控制设备
电子元件控制设备

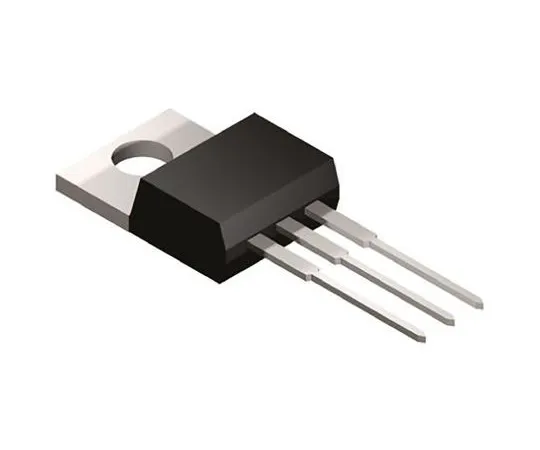

63-4992-97 IRL530PBFN通道MOSFET, 15 A, 100 V,3PinTO-220ABVishay IRL530PBF
型号: 63-4992-97
品牌: Vishay
电子元件控制设备
电子元件控制设备

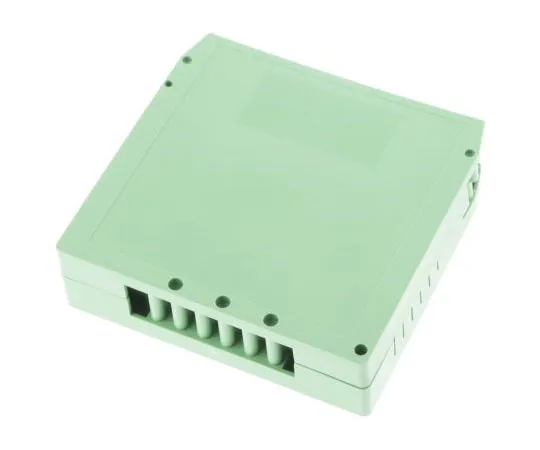

63-7651-01 Phoenix Contact UEGM系列，79 x 22.5 x 85.5mm,聚酰胺DIN导轨外壳 2792002
