产品详细内容
产品型号: 63-6897-35
产品品牌: TE Connectivity
功能
- TE Connectivity CPF Series 0603 Precision Resistors (4.02 → 14.7 k)
- TE Connectivity CPF series thin film precision resistors exhibit high stability and precise accuracy. This chip resistor has a resistance tolerance of at least 0.1% and a temperature coefficient of resistance (TCR) value as low as 15 ppm/°C. CPF precision resistors consist of an alumina substrate and a nichrome (NiCr) resistance layer. 100% matte electrotin-plated finish. With a variety of standard case sizes, this chip resistor has uniformly accurate dimensions for easy placement.
- Features • Temperature range: -55 → +155 °C High stability High precision Accurate dimensions Various resistance values are available to suit all applications • Product application information • Suitable applications for CPF precision resistors include industrial control, communications, instrumentation, and medical applications.
规格
- Quantity: 1 reel (1000 pieces)
- Resistance: 6.04 kohms
- Package/Case: 0603
- Tolerance: +/- 0.1%
- Rated power: 0.063 W
- Temperature factor: +/- 25 ppm/deg.
- Technology: Thin film
- Dimensions: 1.6 x 0.8 x 0.45 mm
- Length: 1.6 mm
- Depth: 0.8 mm
- Height: 0.45 mm
- Series: CPF
- Operating temperature Min: -55 degrees C
- Operating temperature Max: + 155 degrees C
- Case Style: Mold
- RoHS compliance status: Compliance
- Securities Code: 123 -5356
相关产品推荐
您可能还对以下产品感兴趣
电子元件控制设备
电子元件控制设备

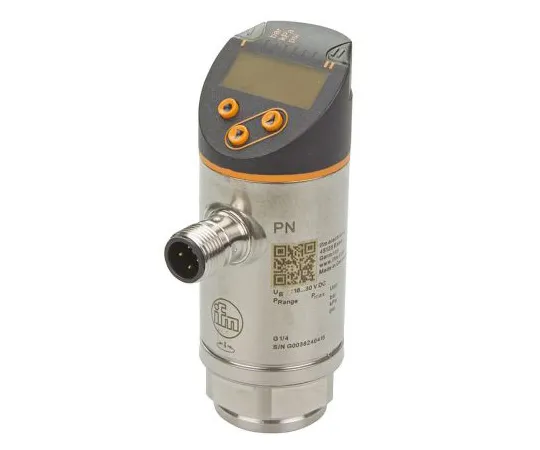

63-6974-30 ifm电子相对流体压力传感器，IO-Link, 400bar最大压力读数，18→30 V直流，G1/4, PN7570
型号: 63-6974-30
品牌: ifm electronic
电子元件控制设备
电子元件控制设备

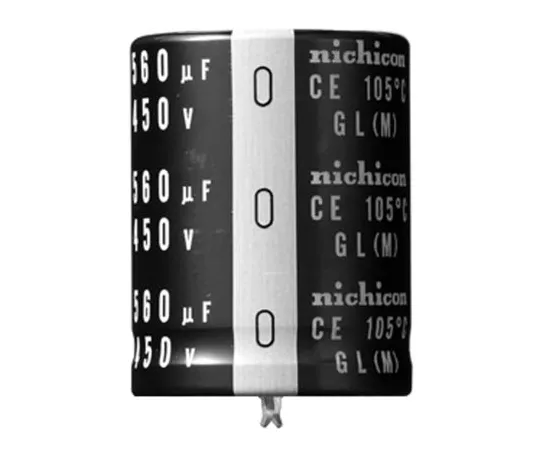

63-5145-45 Nichicon 470μF450V直流铝电解电容器，通孔30 (Dia。)x 45 mm+105°30 mm 10 mm LGL2W471MELB45
