产品详细内容
产品型号: 63-6892-46
产品品牌: KOA
功能
- AEC-Q200 Certified 2512 Thick Chip Resistor, RK73H Series 1% KOA's RK73H Series Precision Resistor is a compact and lightweight solution. This precision resistor with a three-layer electrode structure has excellent reliability and high stability. The use of metal glaze thick film provides excellent weather and heat resistance. This precision resistor is ideal for both flow and reflow soldering and is used in automatic mounting machines. All RK73H chip resistors except the 01005 case size are AEC-Q200 certified and suitable for automotive applications.
- Small, lightweight, stable and reliable lead-free terminal jumper resistor is also included.
规格
- 数量:1袋 (50个)
- 电阻:300Ω
- 包装/外壳:2512
- 容忍度:±1%
- 额定功率:1W
- 温度系数:±100 ppm/K
- 技术:厚膜
- 尺寸:6.3 x 3.1 x 0.6 mm
- 长度:6.3 mm
- 深度:3.1 mm
- 高度:0.6 mm
- 系列:RK 73 H
- 工作温度最小值:-55°C
- 工作温度最大值:+155°C
- 外壳样式:模具
- RoHS合规性状态:合规性
- 证券代码:123 -4483
相关产品推荐
您可能还对以下产品感兴趣
电子元件控制设备
电子元件控制设备

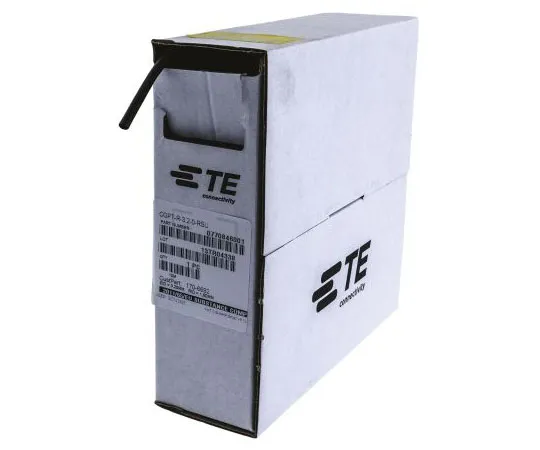

63-7391-62 TEConnectivity黑卤素无热收缩管3.2毫米袖罩。x 10m长，CGPT系列2:1比例 CGPT-R-3.2-0
