产品详细内容
产品型号: 63-6869-14
产品品牌: TE Connectivity
功能
- TE Connectivity CPF Series 0603 Precision Resistors (4.02 → 14.7 k)
- TE Connectivity CPF series thin film precision resistors exhibit high stability and precise accuracy. This chip resistor has a resistance tolerance of at least 0.1% and a temperature coefficient of resistance (TCR) value as low as 15 ppm/°C. CPF precision resistors consist of an alumina substrate and a nichrome (NiCr) resistance layer. 100% matte electrotin-plated finish. With a variety of standard case sizes, this chip resistor has uniformly accurate dimensions for easy placement.
- Features • Temperature range: -55 → +155 °C High stability High precision Accurate dimensions Various resistance values are available to suit all applications • Product application information • Suitable applications for CPF precision resistors include industrial control, communications, instrumentation, and medical applications.
规格
- Quantity: 1 bag (20 pieces)
- Resistance: 5.76 kohms
- Package/Case: 0603
- Tolerance: +/- 0.1%
- Rated power: 0.063 W
- Temperature factor: +/- 25 ppm/deg.
- Technology: Thin film
- Dimensions: 1.6 x 0.8 x 0.45 mm
- Length: 1.6 mm
- Depth: 0.8 mm
- Height: 0.45 mm
- Series: CPF
- Operating temperature Min: -55 degrees C
- Operating temperature Max: + 155 degrees C
- Case Style: Mold
- RoHS compliance status: Compliance
- Securities Code: 122 -9563
相关产品推荐
您可能还对以下产品感兴趣
电子元件控制设备

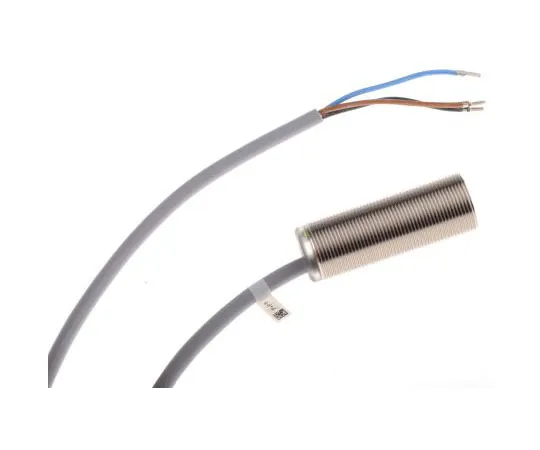

63-7458-61 胡椒+Fuchs感应传感器8毫米检测，M18x1,PNP-NO,长度50毫米，10→30 V直流电源电压 NBB8-18GM50-E2
型号: 63-7458-61
品牌: Pepperl + Fuchs
电子元件控制设备
63-6915-82 Thin-film Chip Resistor 1608 size 0.063 W 237 kohm +/- 0.1% CPF0603B237KE1
型号: 63-6915-82
品牌: TE Connectivity
电子元件控制设备
电子元件控制设备

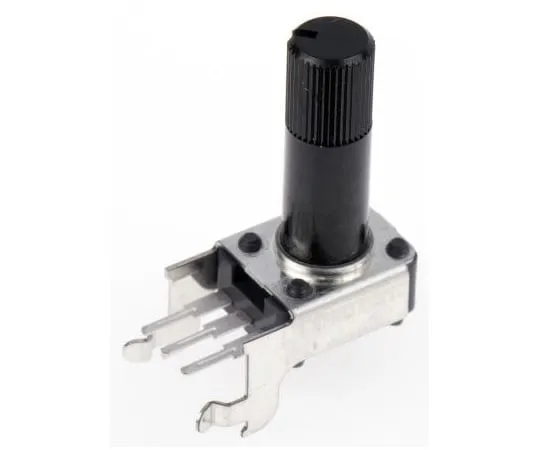

63-4749-04 阿尔卑斯电动旋转式碳膜电位器，直径6毫米。轴，100kΩ，±20%，0.05W,线性RK09K1110A96 RK09K1110A96
