产品详细内容
产品型号: 63-6860-60
产品品牌: XP Power
功能
- XP Power-JCG Series 12/15 W Insulated DC-DC Converter
- XP Power's JCG series is a reliable single/dual output 12/15 W insulated DC-DC converter. This compact product features 1600 V dc breakdown voltage, 2:1 input range, and high power density. Available in an industry-standard package, this series features remote on/off settings and high efficiency of up to 91%.
- 12/15 W Insulated DC-DC Converter Compact, Industry Standard Package 2:1 Inputs 1600 V dc Insulation Voltage Single Output and Dual Output Up to 91% Efficient Substrate Mounting Operating Temperature Range: -40 → +100 °C
规格
- Quantity: 1 piece
- Output Voltage: 3.3 V dc
- Input voltage range: 18 to 36 V dc
- Input voltage nominal: 24 V dc
- insulation Voltage: 1.6 kV dc
- Rating Power: 12 W
- Output Current: 3.5 A
- Mounting type: through hole
- Number of outputs: 1
- Efficiency: 87%
- Package: DIL 24
- Road regulation: ± 0.5%
- Maximum temperature: + 100 degrees C
- Length: 31.75 mm
- RoHS compliance status: Compliance
- Securities Code: 122 -8184
相关产品推荐
您可能还对以下产品感兴趣
电子元件控制设备
63-7616-23 用于空气，非导电气体压力传感器，50Pa最大压力读数，24 V直流的宝石传感器 5266050LBHTI
型号: 63-7616-23
品牌: Gems Sensors
电子元件控制设备

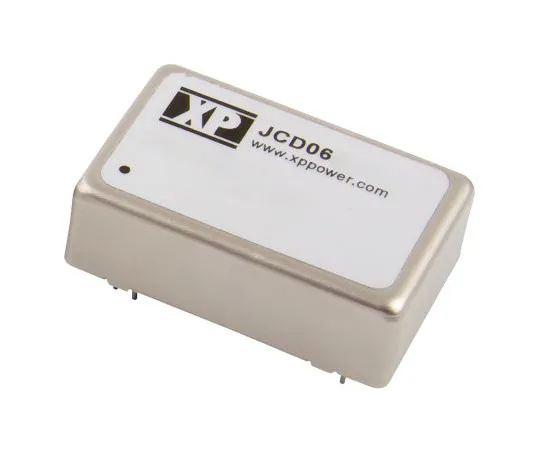

63-6860-18 Insulation DC-DC Converter Vout: ± 5 V dc 18 to 36 V dc 6 W 24 V dc JCD0624D05
型号: 63-6860-18
品牌: XP Power
电子元件控制设备

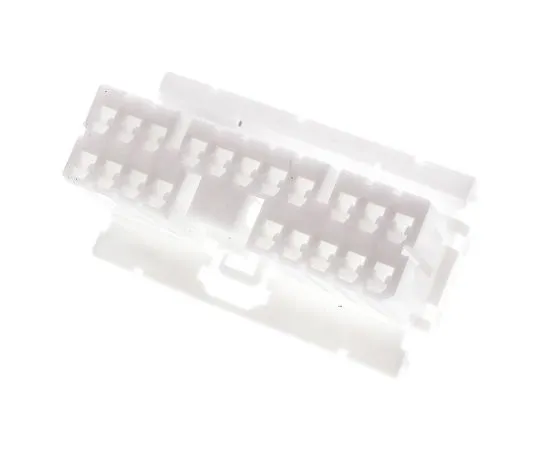

63-4773-24 TEConnectivityMULTILOCK070男连接器外壳，3.5mm间距，20路，2排。 174952-1
