产品详细内容
产品型号: 63-6852-70
产品品牌: XP Power
功能
- XP Power-TR Series Switching Regulator
- The TR series of XP Power is a reliable 3 T switching regulator with a 0.5 A, 3 pin SIP. Packaged in industry-standard packaging, it features continuous short-circuit protection and high efficiency of up to 94%. The input range is wide, and the operating temperature is -40 to +80 °C.
- 3 pin SIP 3T switching regulator industry standard package continuous short circuit protection wide input range Operating temperature range: -40 → +80 °C Maximum efficiency: 94% Pin-compatible with LM78MXX
规格
- Quantity: 1 piece
- Input voltage: 4.5 to 28 V dc
- Output Voltage: 3.3 V dc
- Number of outputs: 1
- Output current: 500 mA
- Rating Power: 1.65 W
- Mounting type: through hole
- Packages: SIP
- Minimum temperature: -40 degrees C
- Maximum temperature: + 85 degrees C
- Efficiency: 89%
- MTBF Average Failure interval: 4Mh
- Road regulation: ± 0.8%
- Line Regulation: ± 0.5%
- Ripple Noise: 60 mV Pk-Pk
- Series: TR
- RoHS compliance status: Compliance
- Securities Code: 122 -7225
相关产品推荐
您可能还对以下产品感兴趣
电子元件控制设备
63-4697-26 Vishay64X系列19 (电气) 、22 (机械) -带引脚端子的通孔微调电阻，20kΩ±10% M64X203KB40
型号: 63-4697-26
品牌: Vishay
电子元件控制设备
63-5085-48 ITT Cannon MDM系列1.27毫米间距9路直线微D连接器，插座，铝合金外壳，457.2毫米导线 MDM-9SH003B-A174
型号: 63-5085-48
品牌: ITT Cannon
电子元件控制设备
63-4942-80 4.7MΩ0402厚膜SMD电阻±1%0.063W-CRCW04024M70FKED CRCW04024M70FKED
型号: 63-4942-80
品牌: Vishay
电子元件控制设备

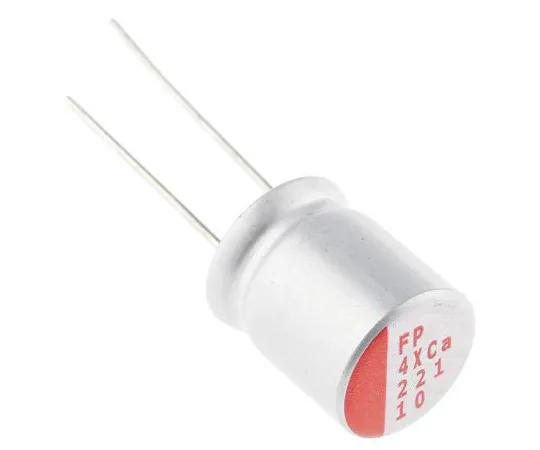

63-5005-96 尼希康220μF10V直流铝聚合物电容器，通孔10 (Dia。)x 12.5mm+105°10mm 5mm RNS1A221MDN1PH
