产品详细内容
产品型号: 63-6848-91
产品品牌: XP Power
功能
- XP Power-IA Series Insulated DC-DC Converter
- The IA series of XP Power is a reliable dual-output 1W insulated DC-DC converter. This series offers a breakdown voltage of 1000 V dc and is available in both industry-standard SIP and DIP packages. This dual-output DC-DC converter uses industry-standard pin alignment to accommodate a wide operating temperature of -40 to +85 °C.
- 1 W Insulated DC-DC Converter 1000 V dc Insulation Voltage Dual Output Operating Temperature Range: -40 → +85 °C Both SIP and DIP Packages Available Maximum Efficiency: 80%
规格
- Quantity: 1 piece
- Output Voltage: ± 15 V dc
- Input voltage range: 4.5 to 5.5 V dc
- Input voltage nominal: 5V dc
- insulation Voltage: 1 kV dc
- Rating Power: 1W
- Output current: ± 33 mA
- Mounting type: through hole
- Number of outputs: 2
- Efficiency: 80%
- Packages: SIP
- Minimum temperature: -40 degrees C
- Maximum temperature: + 85 degrees C
- Series: IA
- RoHS compliance status: Compliance
- Securities Code: 122 -6832
相关产品推荐
您可能还对以下产品感兴趣
电子元件控制设备
电子元件控制设备

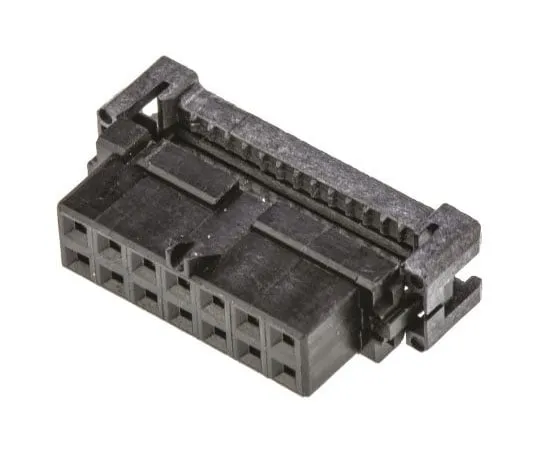

63-7684-62 TE Connectivity 14 Way用于电缆安装的IDC连接器插座，2行 1-111623-9
