产品详细内容
产品型号: 63-6844-32
产品品牌: XP Power
功能
- XP Power-ITV Series Insulated DC-DC Converter
- The XP Power ITV series DC-DC converter is a rugged and reliable product that can be used in a variety of applications. The ITV series is a single-output converter that uses the SIP package.
- Features and benefits: Single output and dual output. SIP package. Industry standard pin alignment. MTBF >3500 hours Wide operating temperature range: -40 °C → +105 °C, at full load: 95 °C (ambient temperature).
规格
- Quantity: 1 piece
- Output Voltage: 15 V dc
- Input voltage range: 4.5 to 5.5 V dc
- Input voltage nominal: 5V dc
- insulation Voltage: 3 kV dc
- Rating Power: 1W
- Output current: 66.7 mA
- Mounting type: through hole
- Number of outputs: 1
- Efficiency: 80%
- Packages: SIP
- Load regulation: -2.5 to + 5%
- Maximum temperature: + 105 degrees C
- Width: 6 mm
- RoHS compliance status: Compliance
- Securities Code: 122 -6059
相关产品推荐
您可能还对以下产品感兴趣
电子元件控制设备
电子元件控制设备
63-4928-56 200Ω0603薄膜精密薄膜表面固定电阻±0.1%0.063W-CPF0603B200RE CPF0603B200RE
型号: 63-4928-56
品牌: TE Connectivity
电子元件控制设备

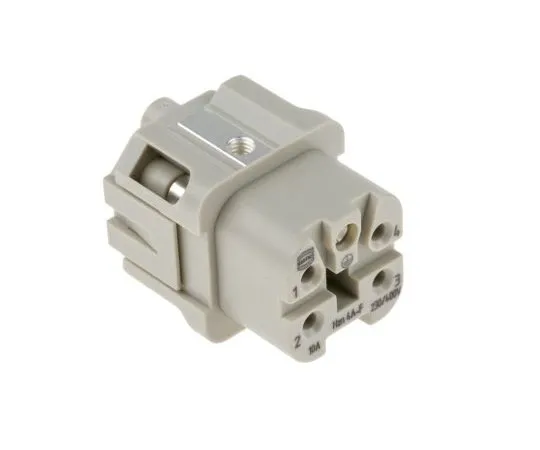

63-7567-54 Han A系列4+PE Way女性10A套头套件，包括女性插口，帽子 09200030301+09200042711
