产品详细内容
产品型号: 63-6844-23
产品品牌: XP Power
功能
- XP Power-ITQ Series Insulated DC-DC Converter
- The XP Power ITQ series DC-DC converter is a rugged and reliable product that can be used in a variety of applications. The ITQ series is a single or dual output converter using the SMD package.
- Features and benefits: 4:1 input range. Single output. SMD package. Industry standard pin alignment. Remote on/off function. Fully tuned output. Wide operating temperature range: -40 °C → +100 °C.
规格
- Quantity: 1 piece
- Output Voltage: 15 V dc
- Input voltage range: 18 to 75 V dc
- Input voltage nominal: 48 V dc
- insulation Voltage: 3000 V dc
- Rating Power: 6W
- Output current: 400 mA
- Mounting type: through hole
- Number of outputs: 1
- Efficiency: 87%
- Road regulation: ± 0.5%
- Maximum temperature: + 100 degrees C
- Series: ITQ
- RoHS compliance status: Compliance
- Securities Code: 122 -6050
相关产品推荐
您可能还对以下产品感兴趣
电子元件控制设备
63-4607-32 Round Connector Contact Contact Male 24 Pole Female 206838-2
型号: 63-4607-32
品牌: TE Connectivity
电子元件控制设备
电子元件控制设备
电子元件控制设备

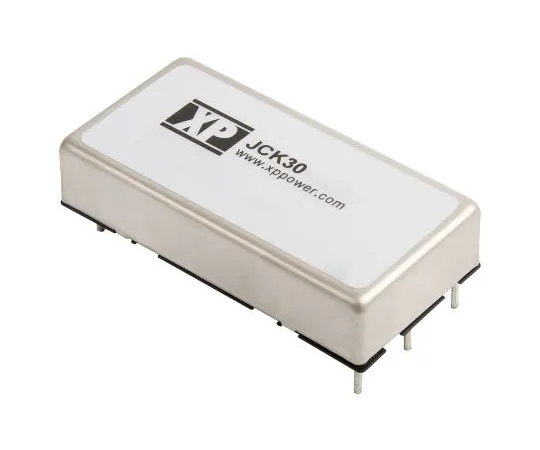

63-6854-76 Insulation DC-DC Converter Vout: ± 15 V dc 36 to 75 V dc 30 W 48 V dc JCK3048D15
