产品详细内容

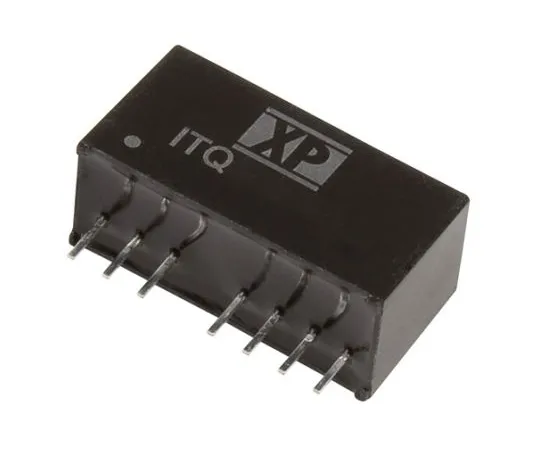

产品型号: 63-6844-13
产品品牌: XP Power
功能
- XP Power-ITQ Series Insulated DC-DC Converter
- The XP Power ITQ series DC-DC converter is a rugged and reliable product that can be used in a variety of applications. The ITQ series is a single or dual output converter using the SMD package.
- Features and benefits: 4:1 input range. Single output. SMD package. Industry standard pin alignment. Remote on/off function. Fully tuned output. Wide operating temperature range: -40 °C → +100 °C.
规格
- Quantity: 1 piece
- Output Voltage: 5V dc
- Input voltage range: 18 to 75 V dc
- Input voltage nominal: 48 V dc
- insulation Voltage: 3000 V dc
- Rating Power: 6W
- Output Current: 1.2 A
- Mounting type: through hole
- Number of outputs: 1
- Efficiency: 83%
- Road regulation: ± 0.5%
- Maximum temperature: + 100 degrees C
- Series: ITQ
- RoHS compliance status: Compliance
- Securities Code: 122 -6040
