产品型号: 63-6843-91
产品品牌: XP Power
功能

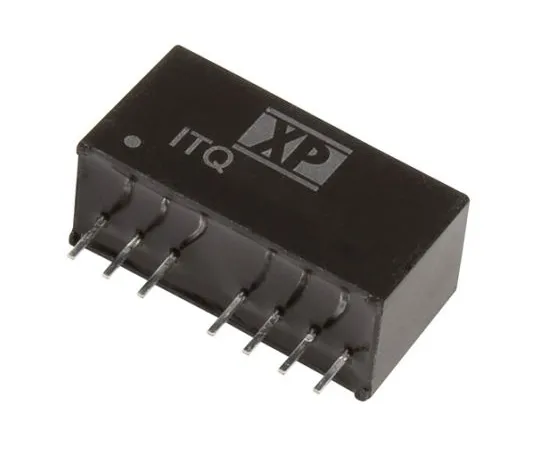

- XP Power-ITQ Series Insulated DC-DC Converter
- The XP Power ITQ series DC-DC converter is a rugged and reliable product that can be used in a variety of applications. The ITQ series is a single or dual output converter using the SMD package.
- Features and benefits: 4:1 input range. Single output. SMD package. Industry standard pin alignment. Remote on/off function. Fully tuned output. Wide operating temperature range: -40 °C → +100 °C.
规格
- Quantity: 1 piece
- Output Voltage: 3.3 V dc
- Input voltage range: 9 to 36 V dc
- Input voltage nominal: 24 V dc
- insulation Voltage: 3000 V dc
- Rating Power: 6W
- Output Current: 1.5 A
- Mounting type: through hole
- Number of outputs: 1
- Efficiency: 79%
- Road regulation: ± 0.5%
- Maximum temperature: + 100 degrees C
- Series: ITQ
- RoHS compliance status: Compliance
- Securities Code: 122 -6018
