产品详细内容
产品型号: 63-6843-89
产品品牌: XP Power
功能
- XP Power-ITB Series Insulated DC-DC Converter
- The XP Power ITB series DC-DC converter is a rugged and reliable product that can be used in a variety of applications. The ITB series is a single output converter using the SIP package.
- Features and Benefits: Single output. SIP package. MTBF: >3500 hours. Suitable for Class B conducting and radiating disturbances. Wide operating temperature range: -40 °C → +105 °C, at full load: 95 °C (ambient temperature).
规格
- Quantity: 1 piece
- Output Voltage: 15 V dc
- Input voltage range: 21.6 to 26.4 V dc
- Input voltage nominal: 24 V dc
- insulation Voltage: 1.5 kV dc
- Rating Power: 1W
- Output current: 66.7 mA
- Mounting type: through hole
- Number of outputs: 1
- Efficiency: 80%
- Packages: SIP
- Load regulation: -2.5 to + 5%
- Maximum temperature: + 105 degrees C
- Length: 19.5 mm
- RoHS compliance status: Compliance
- Securities Code: 122 -6016
相关产品推荐
您可能还对以下产品感兴趣
电子元件控制设备
电子元件控制设备
电子元件控制设备
电子元件控制设备

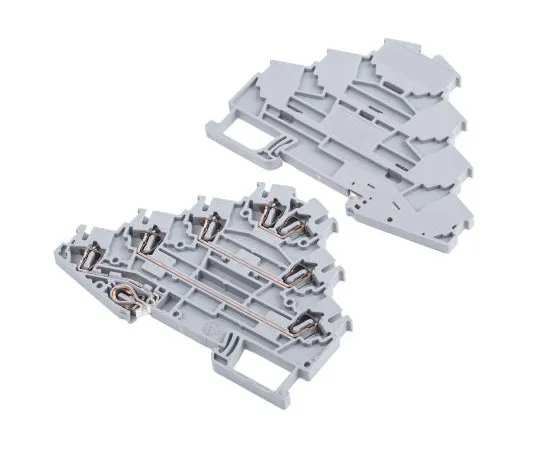

63-7647-51 Phoenix Contact, ST 2.5PE/3L系列，800 V电机连接端子，Spring Termination 3036055
