产品详细内容
产品型号: 63-6843-81
产品品牌: XP Power
功能

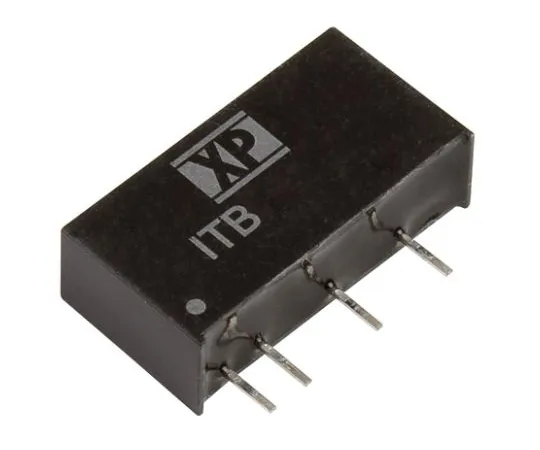

- XP Power-ITB Series Insulated DC-DC Converter
- The XP Power ITB series DC-DC converter is a rugged and reliable product that can be used in a variety of applications. The ITB series is a single output converter using the SIP package.
- Features and Benefits: Single output. SIP package. MTBF: >3500 hours. Suitable for Class B conducting and radiating disturbances. Wide operating temperature range: -40 °C → +105 °C, at full load: 95 °C (ambient temperature).
规格
- Quantity: 1 piece
- Output Voltage: 5V dc
- Input voltage range: 4.5 to 5.5 V dc
- Input voltage nominal: 5V dc
- insulation Voltage: 1.5 kV dc
- Rating Power: 1W
- Output current: 200 mA
- Mounting type: through hole
- Number of outputs: 1
- Efficiency: 80%
- Packages: SIP
- Load regulation: -2.5 to + 5%
- Maximum temperature: + 105 degrees C
- Series: ITB
- RoHS compliance status: Compliance
- Securities Code: 122 -6008
