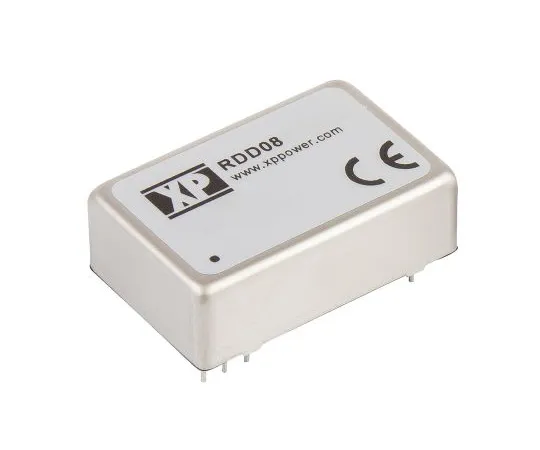

产品型号: 63-6835-18
产品品牌: XP Power
功能
- XP Power-RDD Series DC-DC Converters The XP Power RDD series is a highly reliable 8W single/dual output DC-DC converter. Designed with industry-standard footprint DIP24 plastic packaging, it features a wide input range for railway applications. All of these high-efficiency DC-DC converters are EN50155 certified for rail applications.
- 8 W DIP24 Plastic Package Operating temperature: -40 → +85 °C Full load 3000 V at ambient temperature 70°C dc Wide input range for insulated railway applications EN50155 Certified for railway applications EN50121-3-2 EMC
规格
- Quantity: 1 piece
- Output Voltage: 5V dc
- Input voltage range: 42 to 176 V dc
- Input voltage nominal: 110 V dc
- insulation Voltage: 3 (Minimum) kV dc
- Rating Power: 8W
- Output Current: 1.6 A
- Mounting type: through hole
- Number of outputs: 1
- Medical standards certification: None
- Approved for rail use: Yes
- Package: DIP 24
- Road regulation: ± 0.5%
- Maximum temperature: + 85 degrees C
- Series: RDD
- RoHS compliance status: Compliance
- Securities Code: 122 -4593
