产品详细内容
产品型号: 63-6834-65
产品品牌: XP Power
功能

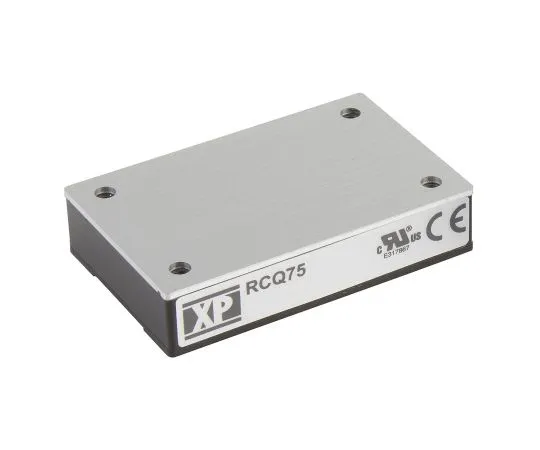

- XP Power-RCQ75 Series DC-DC Converter
- XP Power's RCQ75 series is a highly reliable 75 W insulated DC-DC converter. This adjustable single output series features 3000 V ac insulation and is designed to comply with EN50155 and IEC60571 and meet EN50121-3-2 EMC standards.
- 75 W 3000 V ac Insulated single output 72 V dc and 110 V dc (for railway applications) Operating temperature: -40 → +100 °C Remote on/off and remote sense EN50121-3-2 EMC standards compliant EN50155 and IEC60571
规格
- Quantity: 1 piece
- Output Voltage: 24 V dc
- Input voltage range: 66 to 160 V dc
- Input voltage nominal: 110 V dc
- insulation Voltage: 3 (Minimum) kV ac
- Rating Power: 75 W
- Output Current: 3.13 A
- Mounting type: through hole
- Number of outputs: 1
- Medical standards certification: None
- Approved for rail use: Yes
- Road regulation: ± 0.3%
- Maximum temperature: + 105 degrees C
- Width: 36.8 mm
- RoHS compliance status: Compliance
- Securities Code: 122 -4541
相关产品推荐
您可能还对以下产品感兴趣
电子元件控制设备
电子元件控制设备

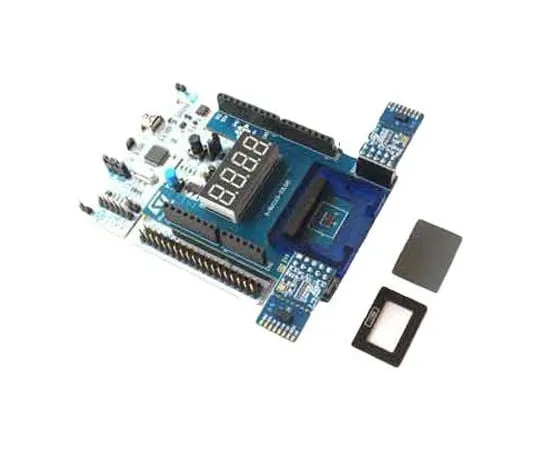

63-4689-60 意法半导体P-NUCLEO-53L0A1,VL53L0X手势传感器评估套件 P-NUCLEO-53L0A1
