产品详细内容
产品型号: 63-6834-59
产品品牌: XP Power
功能

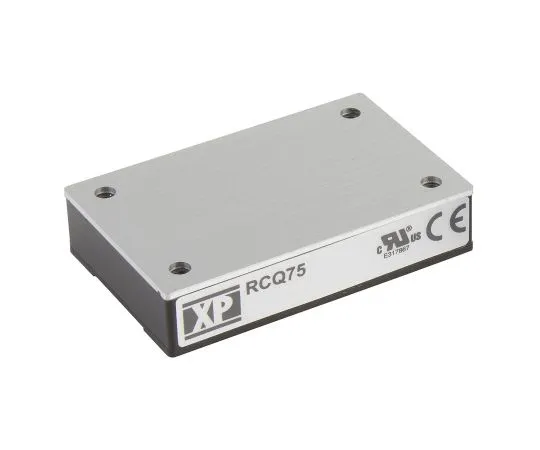

- XP Power-RCQ75 Series DC-DC Converter
- XP Power's RCQ75 series is a highly reliable 75 W insulated DC-DC converter. This adjustable single output series features 3000 V ac insulation and is designed to comply with EN50155 and IEC60571 and meet EN50121-3-2 EMC standards.
- 75 W 3000 V ac Insulated single output 72 V dc and 110 V dc (for railway applications) Operating temperature: -40 → +100 °C Remote on/off and remote sense EN50121-3-2 EMC standards compliant EN50155 and IEC60571
规格
- Quantity: 1 piece
- Output Voltage: 12 V dc
- Input voltage range: 43 to 101 V dc
- Input voltage nominal: 72 V dc
- insulation Voltage: 3 (Minimum) kV ac
- Rating Power: 75 W
- Output Current: 6.25 A
- Mounting type: through hole
- Number of outputs: 1
- Medical standards certification: None
- Approved for rail use: Yes
- Road regulation: ± 0.3%
- Maximum temperature: + 105 degrees C
- Series: RCQ 75
- RoHS compliance status: Compliance
- Securities Code: 122 -4535
相关产品推荐
您可能还对以下产品感兴趣
电子元件控制设备

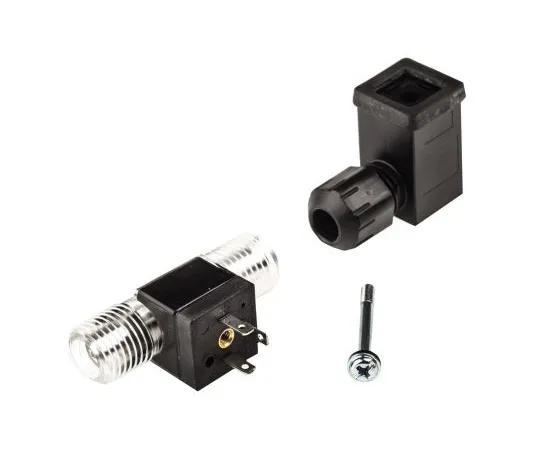

63-4892-62 宝石传感器涡轮流量传感器，0.026 gal/min→0.65 gal/min,FT-210系列 212460E
型号: 63-4892-62
品牌: Gems Sensors
电子元件控制设备
63-7678-68 TE Connectivity 3 WAY用于电缆安装的IDC连接器插头，1行 5-103946-2
型号: 63-7678-68
品牌: TE Connectivity
电子元件控制设备

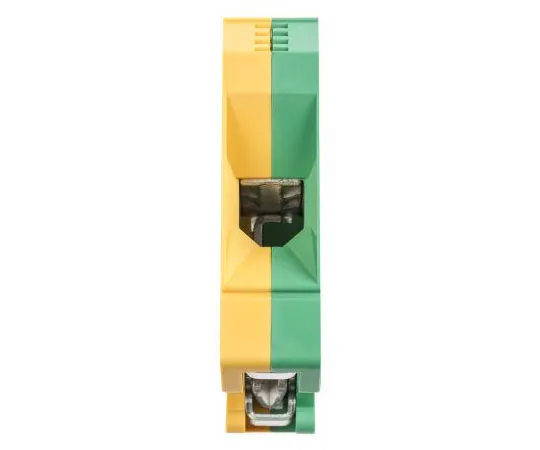

63-7455-22 Weidmuller ATEX 2 Way WPE 35地球终端铝块，螺丝下降12→2 AWG 1010500000
