产品详细内容
产品型号: 63-6834-57
产品品牌: XP Power
功能

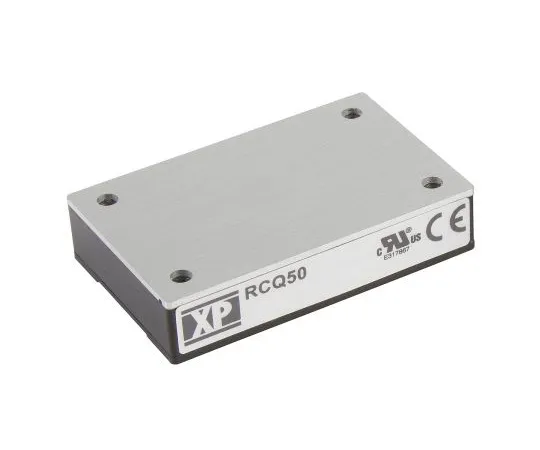

- XP Power-RCQ50 Series DC-DC Converter
- XP Power's RCQ50 series is a highly reliable 50 W insulated DC-DC converter. This adjustable single output series features 3000 V ac insulation and is designed to comply with EN50155 and IEC60571 and meet EN50121-3-2 EMC standards.
- 50 W 3000 V ac Insulated single output 72 V dc and 110 V dc (for railway applications) Operating temperature: -40 → +100 °C Remote on/off and remote sense
规格
- Quantity: 1 piece
- Output Voltage: 24 V dc
- Input voltage range: 66 to 160 V dc
- Input voltage nominal: 110 V dc
- insulation Voltage: 3 (Minimum) kV ac
- Rating Power: 50 W
- Output Current: 2.08 A
- Mounting type: through hole
- Number of outputs: 1
- Medical standards certification: None
- Approved for rail use: Yes
- Road regulation: ± 0.3%
- Maximum temperature: + 105 degrees C
- Length: 57.9 mm
- RoHS compliance status: Compliance
- Securities Code: 122 -4533
相关产品推荐
您可能还对以下产品感兴趣
电子元件控制设备
电子元件控制设备
电子元件控制设备
电子元件控制设备

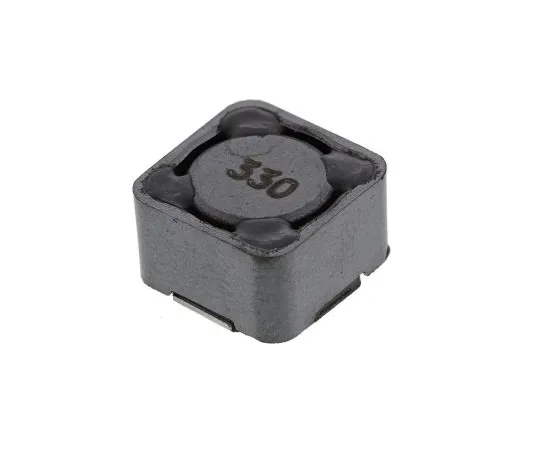

63-5028-88 BournsSRR1280系列铁氧体磁芯绕线SMD电感器，33μH±20%绕线3.5A Idc Q:28 SRR1280-330M
