产品详细内容
产品型号: 63-6834-49
产品品牌: XP Power
功能
- XP EMCO-JWL50 Series DC-DC Converter
- XP Power's JWL50 series is a highly reliable 50 W adjustable single output DC-DC converter. Designed with an industry-standard footprint of 2 ” x 1 ” six-sided metal packaging, it features a very wide input voltage range of 4:1.
- 50 W 1500 V dc Insulation Operating Temperature: 40°C → +100 °C 2 ” x 1 ” Metal Case Package High Power Density 4:1 Very Wide Input Voltage Range Adapted to ITE Safety Certification Single Output 3 Year Warranty Remote On/Off
规格
- Quantity: 1 piece
- Output Voltage: 24 V dc
- Input voltage range: 18 to 75 V dc
- Input voltage nominal: 48 V dc
- insulation Voltage: 1500 (Minimum) V dc
- Rating Power: 50 W
- Output Current: 2.08 A
- Mounting type: through hole
- Number of outputs: 1
- Efficiency: 91%
- Road regulation: ± 0.5%
- Maximum temperature: + 105 degrees C
- Series: JWL 50
- RoHS compliance status: Compliance
- Securities Code: 122 -4525
相关产品推荐
您可能还对以下产品感兴趣
电子元件控制设备
电子元件控制设备

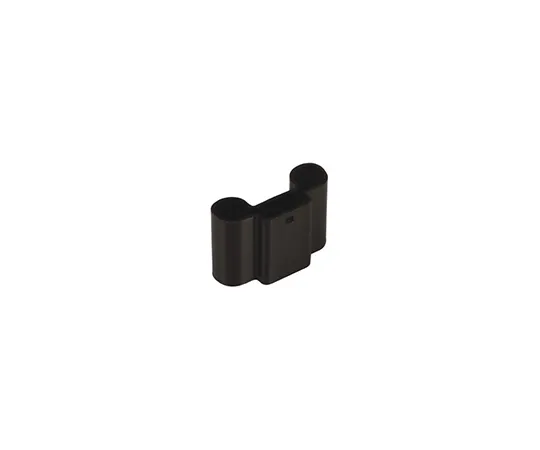

63-5002-57 散热器，TO-126, 26°C/W, 8.13 x 19.81 x 13.21毫米，滑动开启 577500B00000G
