产品详细内容
产品型号: 63-6834-27
产品品牌: XP Power
功能

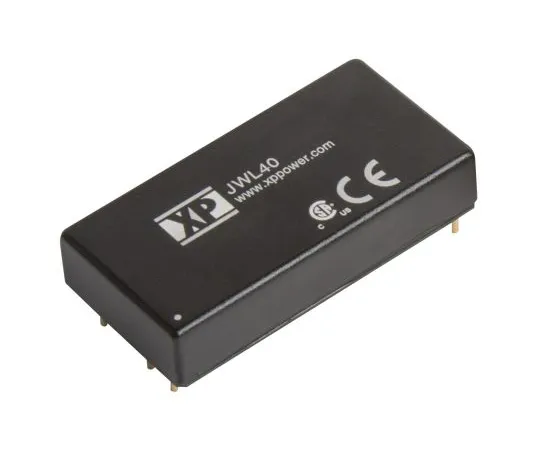

- XP Power-JWL40 Series DC-DC Converter
- XP Power's JWL40 series is a highly reliable 40 W adjustable single/dual output DC-DC converter. Designed with an industry-standard footprint of 2 ” x 1 ” six-sided metal packaging, it features a very wide input voltage range of 4:1.
- 40 W 1500 V dc Insulation Operating Temperature: -40 → +100 °C 2 ” x 1 ” Metal Case Package High Power Density 4:1 Very Wide Input Voltage Range Complies with ITE Safety Certification Stable Single/Dual Output 3 Year Warranty Remote On/Off
规格
- Quantity: 1 piece
- Output Voltage: 5V dc
- Input voltage range: 9 to 36 V dc
- Input voltage nominal: 24 V dc
- Rating Power: 40 W
- Output Current: 8 A
- Mounting type: through hole
- Number of outputs: 1
- Efficiency: 90%
- Road regulation: ± 0.5%
- Maximum temperature: + 105 degrees C
- Series: JWL 40
- RoHS compliance status: Compliance
- Securities Code: 122 -4503
