功能

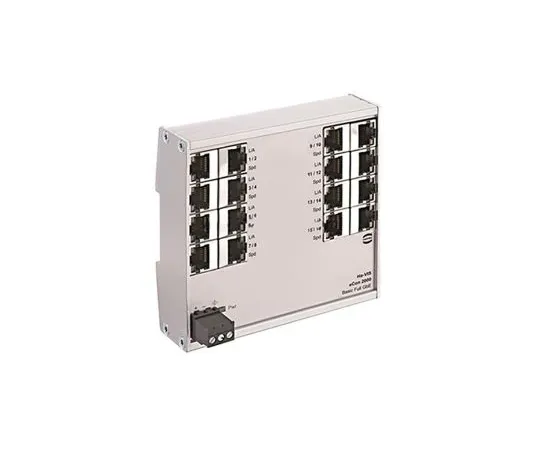

• Ha-VIS eCon 2000 Full Gigabit Ethernet Basic
• The Ha-VIS eCon 2000 Full Gigabit family of unmanaged Ethernet switches provides a plug-and-play solution for DIN rail mounting connections.　The very flat structure and ports on the front of the switch are the main advantages of the eCon 2000 series.　This allows for space-limited or hard-to-reach applications.
• Features and benefits: Non-blocking full Ethernet switch architecture, IEEE802.3 compliant jumbo frame support (10 kB Ethernet) Power supply compatible with both reverse polarity and surge prevention 24/48 V dc Twisted pair Cat
• 5 cable with 10/100/1000 Mbit/s transfer rate for 100 m transfer distance Commercial temperature range: 0 → +55 °C Industrial temperature range: -40 → +70 °C Energy efficient Ethernet reduces energy consumption Automatic negotiation, automatic polarity identification, automatic MDI (X) provides a plug-and-play solution Anodized aluminum housing
• Typical usage: Industrial network structure Machinery and robots Automated transportation Wind and solar energy shipbuilding
