功能

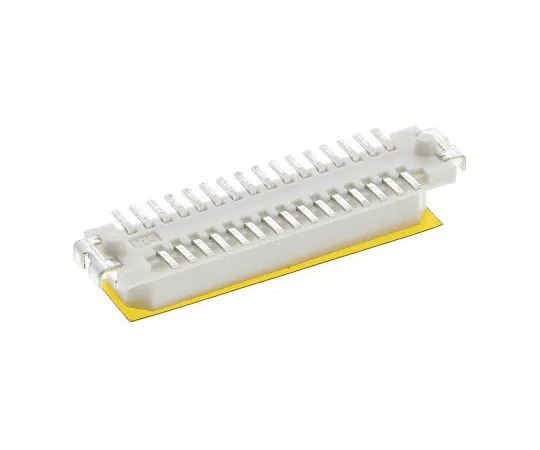

• Hirose Denki DF9 Series 1.0 mm Board-to-Board Header and Socket Connector
• The DF9 Series Board-to-Board Headers and Connectors are designed to comply with the Video Electronics Standards Association (VESA) FPDI-1 (Flat Panel Display Interface) standard interface connectors for LCD displays.　The DF9 series board connector has a trapezoidal mating interface to prevent accidental insertion.　Easy locking mechanism ensures that the connectors are firmly engaged. In addition, you can feel that it is completely engaged with the click.　Some DF9 board headers and socket connectors have mounting bosses that hold the connector in place when soldering or installing manually.　The surface-mounted socket and the header connector are firmly fixed to the substrate and are equipped with metal fittings to prevent the solder joints from peeling off due to mechanical stress.
• Features and Advantages: Small design VESA FPDI-1 standard compliant interface for LCD displays Trapezoidal engagement to prevent accidental insertion of connectors Stacking height 4.3 mm Easy locking mechanism to engage securely Holding the connector in place during soldering Mounting boss Surface mount models use mounting hardware to securely attach to the board and prevent solder peeling
• Applications: The DF9 series header and socket connectors are ideal for LCD displays on mobile devices, POS terminals, measurement devices and other handheld devices.
