产品详细内容

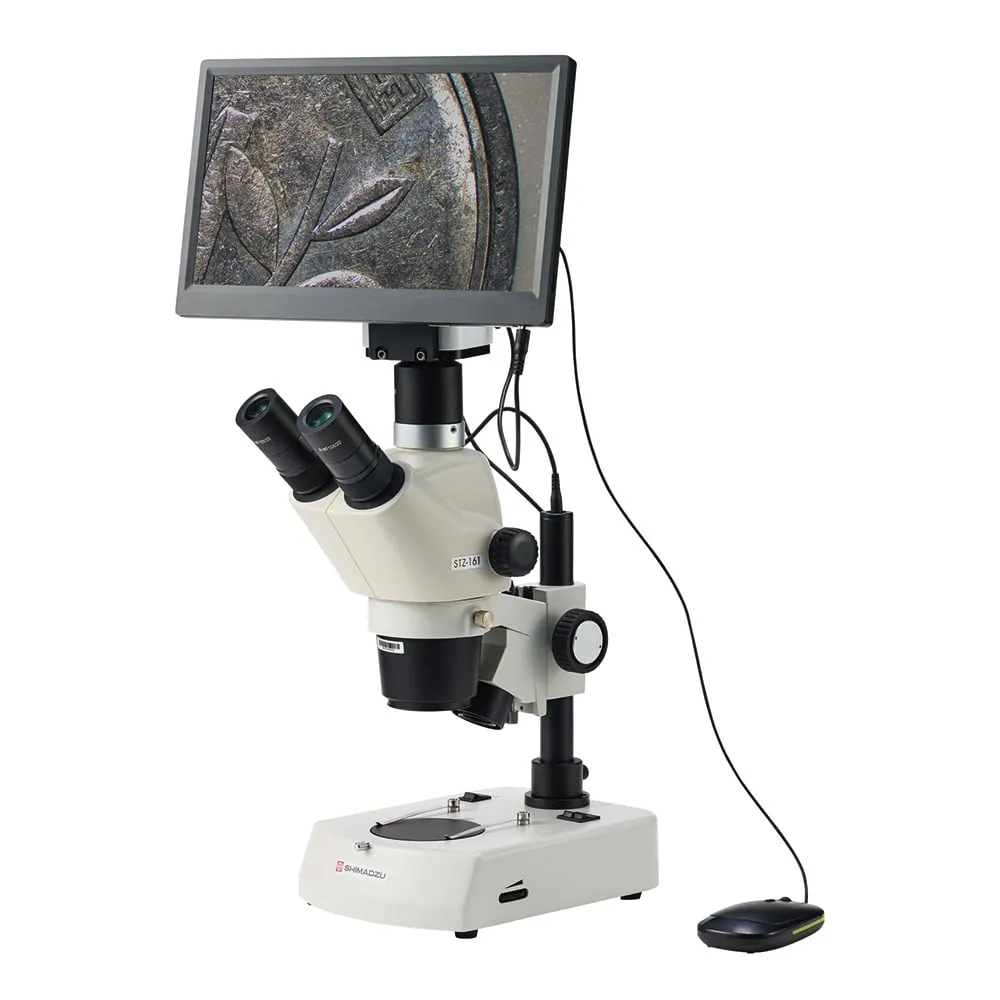

产品型号: 67-4715-69
产品品牌: SHIMADZU RIKA CORPORATION
功能
- The microscope has a large 11.6 inch monitor with three eyes. The screen is easier to see.
- Simultaneous HDMI/USB output is possible! You can output to the monitor and PC simultaneously.
- The lens barrel operating distance is as wide as 110 mm, making it easy to work while observing.
- You can save still images (JPEG) and movies (MP4) on the spot using an SD card/USB memory.
- Measurements can be taken on the HDMI screen.
规格
- Overall magnification: 7.5~45× (zoom)
- Eyepiece: WF10 x/20 mm Eyepiece Micrometer Mounting Frame
- Objective Lens: 0.75~4.5 x (In-Lens Zoom Type)
- Lens barrel type: 3-eye 45° inclined lens barrel 360° rotary type
- Focusing Device: Rack-Pinion Handle/Post Slide (Screw Fixed)
- Working Distance: 110 mm (Without Auxiliary Objective Lens)
- Stage: Body 220 x 237 mm (Including Protrusion) Black & White Round Stage Size: φ80 mm
- Lighting equipment: LED (continuous dimming type) epicenter/transmission
- Size: (including monitor) Approx. W280 x D310 x H625mm
- Weight: Approximately 5.0 kg (including monitor)
- Power Supply: 100 to 240 VAC 50/60Hz (AC Adapter)
- Video output: USB2.0/3.0 HDMI USB memory SD * USB memory and SD card are sold separately.
- Image Sensor: 1/1.8 "CMOS
- number of effective pixels
- USB: 3840×2160 (approx. 8.3 million pixels)
- HDMI: 3840×2160 SD: 3840×2160 (approx. 8.3 million pixels)
- Monitor: 11.6 inch HDMI monitor
- Compatible Software: Motic Images Plus
- Supported operating systems: Windows10
- Accessories: Three-lens cap, rubber band, dust cover (For Microscope Body. * If you want to cover with the monitor mounted, please purchase the optional "For Microscope with Dust Cover Monitor".) , Hex Wrench (2.5 mm), AC Adapter (1 for Microscope and 1 for Digital Camera), Stage Disk (Black & White, Glass), Software (Motic, Images, Plus), Dust Cap, Calibration Slide, USB Cable, HDMI Cable, C Mount Ring, C Mount Adapter (0.65 x), USB Mouse
