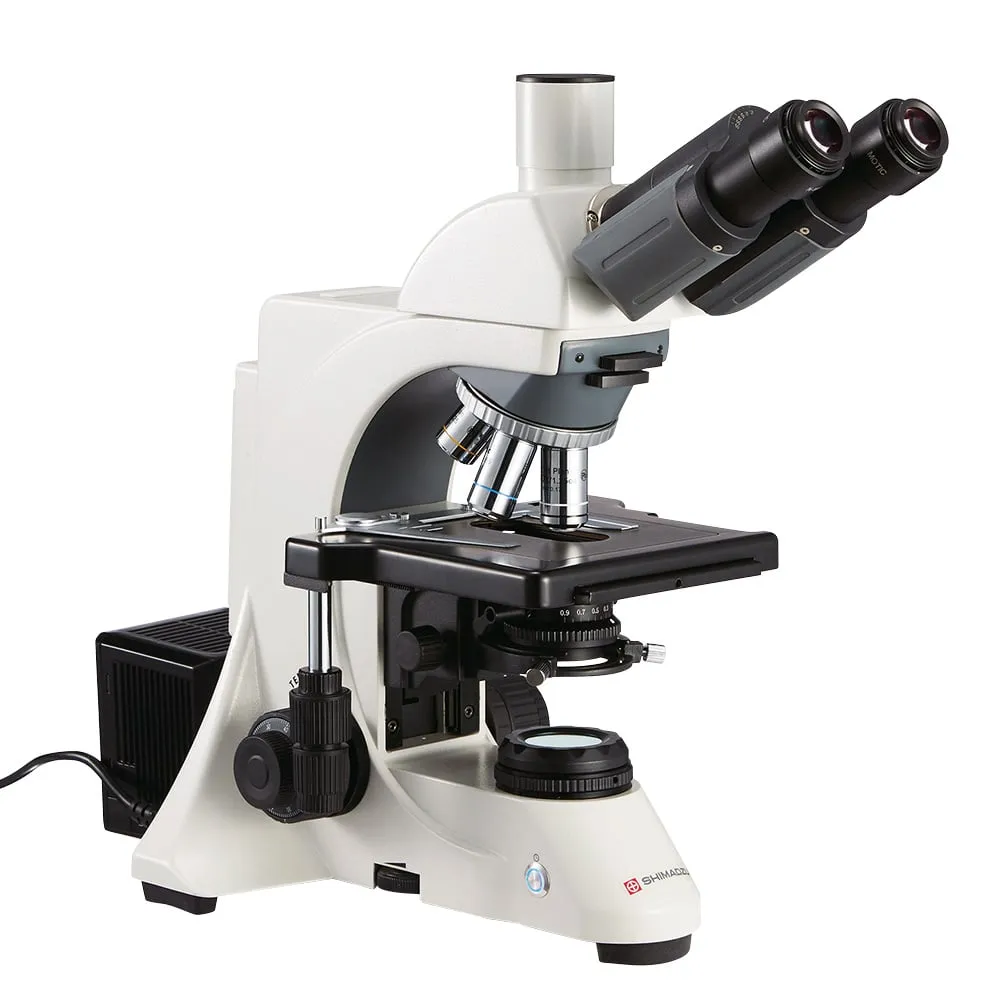

产品型号: 64-5162-42
产品品牌: SHIMADZU RIKA CORPORATION
功能
- Uses a newly designed UC lens to ensure clear visibility.
- A three-eye biological microscope with a large housing and excellent stability.
- Built-in human sensor that automatically switches to eco-mode when you leave your seat.
- Phase difference, dark field and simple polarization observation are possible by options.
规格
- Overall magnification: 40~1000 x
- Eyepiece: N-WF10 x/22 mm Micrometer Mounting Frame (25 mm Diameter)
- Objective Lens: UC PLAN 4 x 10 x S40 x S100 x -oil
- Lens barrel type: 30° inclined lens barrel eyepiece sleeve inner diameter 30 mm
- Focusing Device: Rack and Pinion Type Rough Single Axis Type Rough Fine Motion Handle Stage Up and Down Motion Rough Handle Torque Adjustable Rough Handle Stopper with Sample Safety Device Fine Motion Minimum Scale: 2 μm
- Stage: Rackless XY Stage Size: 175 x 145 mm Observation Operation 80 x 53 mm
- Abbe Capacitor (Concentrator): Bevel Capacitor 0.9/0.13 (When Dry) Iris Aperture
- Lighting system: Halogen (Kähler lighting, continuous dimming) 50 W
- Size and Weight: Approx. W240 x D372 x H434mm Approx. 11 kg
- Power: 100-240 VAC 50/60Hz
- Accessories: rubber, oil immersion, blue filter, diffusion filter, hex wrench for adjustment, spare lamp, vinyl cover, power cord
- *This product has been developed for educational and research purposes and is not a medical device.
- Product Code: 114-985
