产品详细内容
产品型号: 63-6756-93
产品品牌: RS PRO
功能
- Molded Heater Matte • Molded silicon heater mats are thin, lightweight, and low in thermal mass, enabling rapid heating and fast response to temperature control. This mat has a wide range of operating temperatures, high flexibility and excellent electrical properties, giving it distinct advantages over other heating systems. If you need to accurately fit a heater mat in a small diameter pipe, you can use the Molded option to achieve your goal. Although this product is designed for accurate installation, we recommend that you use self-adhesive tape to secure it permanently.
- Features and benefits: Suitable for pipes of diameter range recommended for use with self-fusing tape to enhance support during flexible silicon installation with heating elements in etched foil for process piping of various sizes where standard heating methods are difficult to applyOperating temperature: +200 °C (intermittent use), 150 °C (continuous use)
规格
- 马特形状:圆柱形
- 额定功率:35 W
- 圆垫直径:28mm
- 最高温度:+200°C
- 供应电压:110 V交流电
- 尺寸:28 mm
- 代码号:106-5412
相关产品推荐
您可能还对以下产品感兴趣

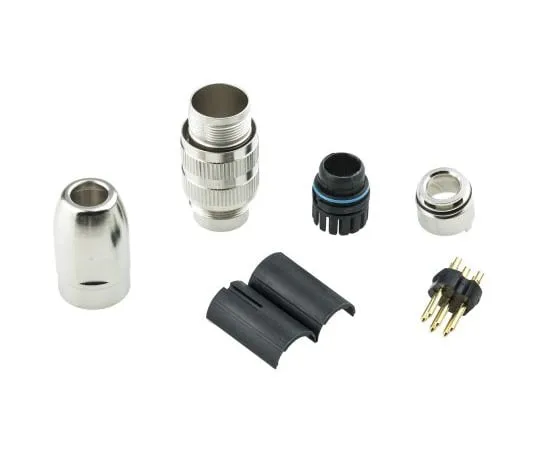

63-4860-09 Lumberg 6极丁插头,DIN EN 60529, 5 A, 250 V acIP68,螺丝开启 0332 06
型号: 63-4860-09
品牌: Lumberg

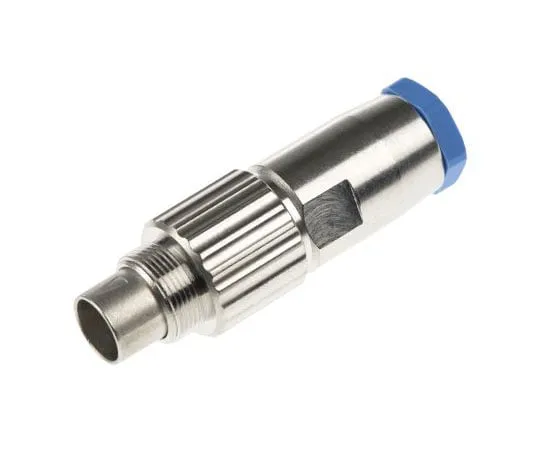

63-7454-56 TEConnectivityTRIADTM01系列微型电缆安装连接器,3个触点插头 1-1437719-5
