产品详细内容
产品型号: 63-6663-20
产品品牌: TE Connectivity
功能

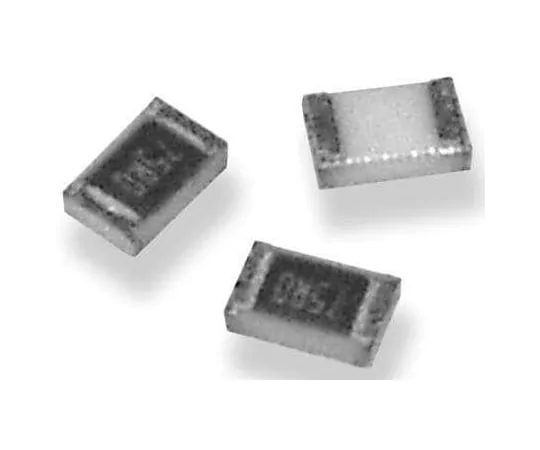

- High Precision Thin Film Resistors RN73 Series
- The RN73 Series is a highly stable product of precision chip resistors. Stable high-frequency performance for various power losses per chip size
规格
- Quantity: 1 bag (5 pieces)
- Resistance: 2.21 kohms
- Package/Case: 0603
- Tolerance: +/- 0.1%
- Rated power: 0.063 W
- Temperature factor: +/- 10 ppm/deg.
- Technology: Thin film
- Dimensions: 1.55 x 0.8 x 0.45 mm
- Length: 1.55 mm
- Depth: 0.8 mm
- Height: 0.45 mm
- Series: RN 73
- Operating temperature Min: -55 degrees C
- Operating temperature Max: + 125 degrees C
- Maximum operating voltage: 50 V
- RoHS compliance status: Compliance
- Securities Code: 472 -880
相关产品推荐
您可能还对以下产品感兴趣
电子元件控制设备
63-7397-46 Murata单层陶瓷电容器SLCC47pF 1.5 kV直流，500 Vrms ac±10%陶瓷介质DE1系列通孔 DE11XRA470KA4BQ01F
型号: 63-7397-46
品牌: Murata
电子元件控制设备

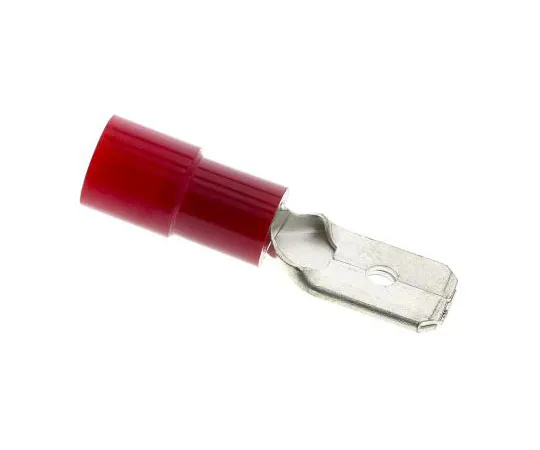

63-7636-65 RS PRO,红色绝缘压痕标签端子，0.5mm2到1.5mm2,22AWG到16AWG, 0.8 x 6.35mm 613-9744
